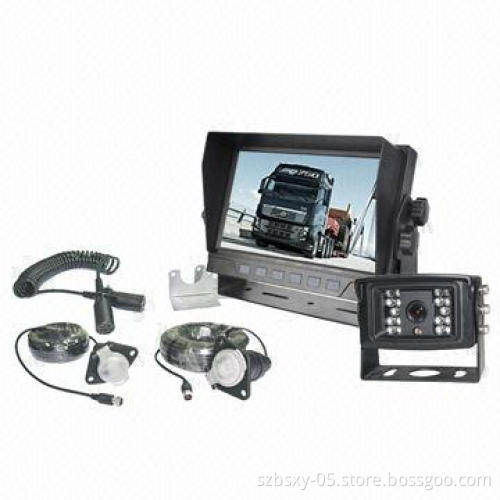

Trailer rear view system with monitor/car camera for long vehicle

Get Latest Price

Payment Type:: T/T in advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in advance

Product Description

Dimension: 7 inches digital color LCD monitor

TV systems: NTSC/PAL/AUTO

Resolutions: 800 X 3 X 480RGB

Brightness: 400cd/¡

lattice distance: 0.192(H) x 0.1805(V)

Viewing angle:U: 50°/D: 60°, R/L: 70°

Rating: 20,000 hours

Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian and German

With remote control

Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control

Screen display mode can be switched the day mode & nightmode by pressing button

Support 2 cameras video simultaneous input

Support 2 cameras audio simultaneous input

Normal or mirrored picture can be switched separately on eachcamera

Separate trigger control wire on each camera

Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops

The trigger delay time can be adjusted (0-4s) on eachcamera.

In standby mode, monitor will turn on automatically whentriggered and will switch to the corresponding trigger cameraimage

Working voltage: 12-32V

Model: JY-665

Image device: 1/4 SHARP CCD

Resolution: 420TV lines

TV system: PAL/NTSC

Effective pixels: 512 x 582 pixels/512 x 492 pixels

Sensing area: 3.6mm x 2.7mm

Scanning system: 2:1 Interlace

Synchronization system: internal

Horizontal sync. frequency: 15.625/15.734KHz

Vertical Sync. frequency: 50/60Hz

Minimum Illumination: 0 lux (infrared lamps on) 0.1 lux(day)/F1.2

Video output: 1.0vp-p, 75Ω

Gamma consumption: 0.45/AGC: auto

S/N ratio: better than 48dB

White balance: auto

Electronic shutter: 1/60(NTSC)/1/50(PAL)-1/10,000 seconds

BLC: auto

Products idiomatic performance:

Lens: 2.5mm/lens angle: 120°
Infrared LED light: 18pcs
IR distance: 15m
Waterproof rate: IP69K
7-Pin trailer cable 1-CH
3m curly cable
Tow+15 male cable
Tow+10m female cable

Lens: 2.5mm/lens angle: 120°

Infrared LED light: 18pcs

IR distance: 15m

Waterproof rate: IP69K

7-Pin trailer cable 1-CH

3m curly cable

Tow+15 male cable

Tow+10m female cable
