Night vision rear view system for buses backup

Get Latest Price

Payment Type:: T/T in advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in advance

Product Description

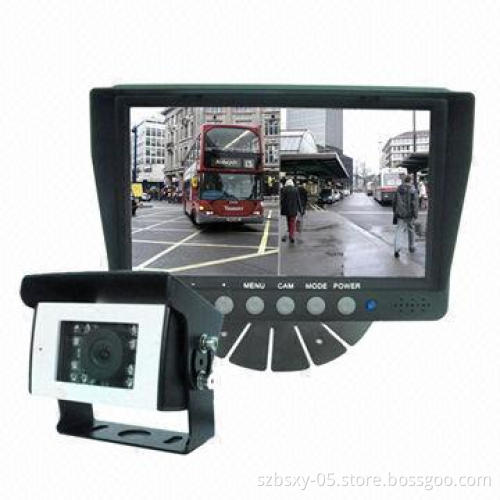

Night vision rear view system for buses backup

Dimension: 7 inches color LCD monitor

TV systems: NTSC/PAL AUTO

Resolutions: 480 x 3 x 234RGB

Brightness: 300cd/¡

Viewing angles: U:50°/D:60°, R/L: 70°

Rating: 20,000 hours

Products featured function

Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian,

With remote control

Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control

Support 2 cameras video simultaneous input

Support 1cameras audio simultaneous input

Separate trigger control wire on second camera

Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops.

In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image

Working voltage:12V

Working Current: 300MA

Self-protect of the DC voltage at the Short-Circuit.

Operating temperatures: -10 - 65

Storage Temperature:-30 - 80

MAGE device: 1/4 SHARP CCD

Resolution: 420TV lines

TV systems: PAL/NTSC

Effective Pixels: 512 x 582 pixels / 512 x 492 pixels

Sensing Area: 3.6mm x 2.7mm

Scanning system: 2:1Interlace

Sync. System: Internal

Horizontal sync. Frequency: 15.625KHz/15.734KHz

Vertical sync. frequency: 50Hz/60Hz

Minimum Illumination: 0Lux (Infrared lamps on) 0.1 Lux(day)/F1.2

Video output: 1.0vp-p, 75Ohm

Gamma consumption: 0.45

S/N ratio: Better than 48dB

White balance: Auto

Electronic shutter: 1/60(NTSC)/1/50(PAL) - 1/10,000seconds

Products idiomatic performance:

Heavy-duty camera
Lens: 2.5mm
Lens angle: 120°
Infrared LED light: 12pcs
IR distance: 15m
Waterproof rate: IP69
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Current consumption: Max. 200mA
Power supply: DC 12V
Operating temperatures: -20 - 70°C, RH95 max.
Storage temperatures: -40 - 8°C

Heavy-duty camera

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 12pcs

IR distance: 15m

Waterproof rate: IP69

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Current consumption: Max. 200mA

Power supply: DC 12V

Operating temperatures: -20 - 70°C, RH95 max.

Storage temperatures: -40 - 8°C
