Night vision waterproof car rear view systems for buses backup system

Get Latest Price

Payment Type:: T/T in advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in advance

Product Description

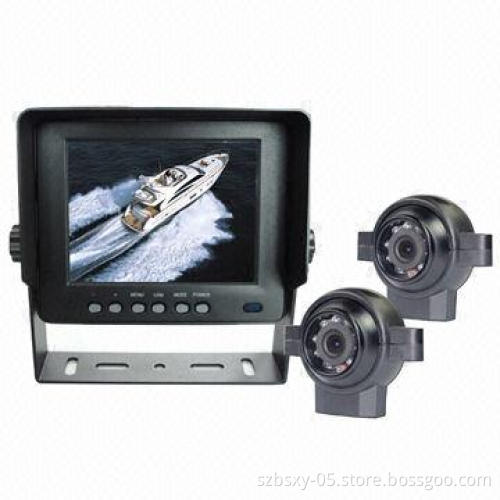

5-inch waterproof monitor

Dimension: 5-inch digital color LCD monitor

Resolution: 640 x 3(RGB) x 480

Multiple menu languages: English, Dutch, French, Spanish,Russian, German and Italian

Monitors can be optional with loudspeaker or not, users canadjust sound on the control

Screen display mode can be switched the day mode & nightmode by pressing button

Supports 2 cameras video/audio simultaneous input

Separate trigger control wire on each camera

Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops

In standby mode, monitor will turn on automatically whentriggered and will switch to the corresponding trigger cameraimage, trigger end after shutdown

Working voltage: 12-32V, self-protect of the DC voltage at theshort-circuit

Side view camera specs:

Image device: 1/4 Sharp CCD
Resolution: 420TV lines
TV system: PAL/NTSC
Effective pixels: 512 x 582/512 x 492 pixels
Sensing area: 3.6mm x 2.7mm
Scanning system: 2:1 interlace
Sync. system: internal
Horizontal sync. frequency: 15.625/15.734KHz
Vertical sync. frequency: 50/60Hz
Minimum illumination: 0Lux (infrared lamps on) 0.1Lux(day)/F1.2
Video output: 1.0vp-p, 75Ohm
Gamma consumption: 0.45
AGC: Auto
S/N ratio: better than 48dB
White balance: Auto
Electronic shutter range: 1/60(NTSC)/1/50(PAL)-1/10,000seconds
BLC: Auto

Products idiomatic performance:

Lens: 2.5mm
Angle: 120°
Infrared LED light: 9pcs
IR distance: 10m
Waterproof rate: IP68
Shell material: aluminum alloy
Bracket material: nylon fabric
Dust-proof, waterproof, hydrochloric acid prevention andexplosion preventions
Current consumption: max 180mA
Power supply: DC12V
Operating temperatures: -20°C~70°C, RH95 max
Storage temperatures: -40°C~80°C, RH95 max

Products featured functions are optional:

Chip CMOS/Chip SONY 420/480/520/560 l

Image device: 1/4 Sharp CCD

Resolution: 420TV lines

TV system: PAL/NTSC

Effective pixels: 512 x 582/512 x 492 pixels

Sensing area: 3.6mm x 2.7mm

Scanning system: 2:1 interlace

Sync. system: internal

Horizontal sync. frequency: 15.625/15.734KHz

Vertical sync. frequency: 50/60Hz

Minimum illumination: 0Lux (infrared lamps on) 0.1Lux(day)/F1.2

Video output: 1.0vp-p, 75Ohm

Gamma consumption: 0.45

AGC: Auto

S/N ratio: better than 48dB

White balance: Auto

Electronic shutter range: 1/60(NTSC)/1/50(PAL)-1/10,000seconds

BLC: Auto

Lens: 2.5mm

Angle: 120°

Infrared LED light: 9pcs

IR distance: 10m

Waterproof rate: IP68

Shell material: aluminum alloy

Bracket material: nylon fabric

Dust-proof, waterproof, hydrochloric acid prevention andexplosion preventions

Current consumption: max 180mA

Power supply: DC12V

Operating temperatures: -20°C~70°C, RH95 max

Storage temperatures: -40°C~80°C, RH95 max

Chip CMOS/Chip SONY 420/480/520/560 l
