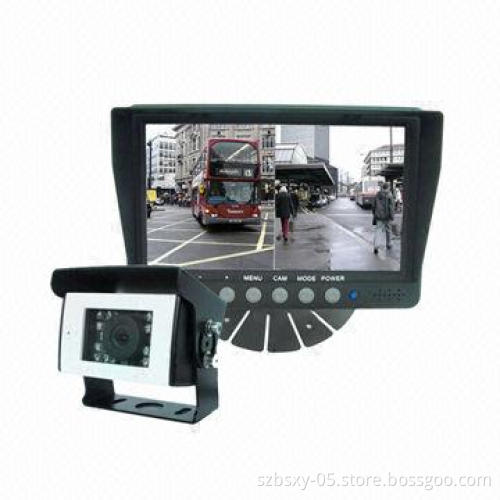

Bus rear view system with 7-inch monitor and camera for farm tractor

Get Latest Price

Payment Type:: T/T in advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in advance

Product Description

Specifications:

Dimensions: 7-inch color LCD monitor
TV systems: NTSC/PAL auto
Resolution: 480 x 3 x (RGB) x 234 pixels
Brightness: 300cd/¡
Contrast: 300:1
Aspect ratio: 16:9
Viewing angle: U:50°/D:60°, R/L:70°
Rating: 20,000 hours

Features:

Multiple menu languages: English, Dutch, French, Portuguese,Spanish & Russian
With remote control
Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
Supports 2 cameras video simultaneous input
Supports 1 camera audio simultaneous input
Separate trigger control wire on second camera
Monitor will automatic switch-over the image to second camera& back to the original mode when the trigger stops
In standby mode, monitor will turn on automatically whentriggered & will switch to second camera image
Working voltage: 12V
Working current: 300mA

Other parameters:

Image device: 1/4 Sharp CCD
Resolution: 420TV lines
Effective pixels: 512 x 582 pixels/512x492 pixels
Sensing area: 3.6x2.7mm
Scanning system: 2:1 interlace
Sync system: Internal
Horizontal sync frequency: 15.625/15.734KHz
Vertical sync frequency: 50/60Hz
Minimum illumination: 0Lux (Infrared lamps on) 0.1Lux(day)/F1.2
Video output: 1.0vp-p, 75 Ohm
Gamma consumption: 0.45
AGC: Auto
S/N ratio: Better than 48dB
White balance: auto
Electronic shutter speed range:1/60(NTSC)/1/50(PAL)~1/10,000sec
BLC: auto

Products idiomatical performance:

Heavy-duty camera
Lens: 2.5mm
Lens angle: 120°
Infrared LED light: 12pcs
IR distance: 15m
Waterproof rate: IP69
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Current consumption: max. 200mA
Power supply: DC 12V
Operating temperatures: -20 to 70°C, RH95 maximum
Storage temp range: -40 to 80°C/RH95 maximum

Products featured functions are optional:

Chip Sony 420/480/520/560 lines

Dimensions: 7-inch color LCD monitor

TV systems: NTSC/PAL auto

Resolution: 480 x 3 x (RGB) x 234 pixels

Brightness: 300cd/¡

Contrast: 300:1

Aspect ratio: 16:9

Viewing angle: U:50°/D:60°, R/L:70°

Rating: 20,000 hours

Multiple menu languages: English, Dutch, French, Portuguese,Spanish & Russian

With remote control

Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control

Supports 2 cameras video simultaneous input

Supports 1 camera audio simultaneous input

Separate trigger control wire on second camera

Monitor will automatic switch-over the image to second camera& back to the original mode when the trigger stops

In standby mode, monitor will turn on automatically whentriggered & will switch to second camera image

Working voltage: 12V

Working current: 300mA

Image device: 1/4 Sharp CCD

Resolution: 420TV lines

Effective pixels: 512 x 582 pixels/512x492 pixels

Sensing area: 3.6x2.7mm

Scanning system: 2:1 interlace

Sync system: Internal

Horizontal sync frequency: 15.625/15.734KHz

Vertical sync frequency: 50/60Hz

Minimum illumination: 0Lux (Infrared lamps on) 0.1Lux(day)/F1.2

Video output: 1.0vp-p, 75 Ohm

Gamma consumption: 0.45

AGC: Auto

S/N ratio: Better than 48dB

White balance: auto

Electronic shutter speed range:1/60(NTSC)/1/50(PAL)~1/10,000sec

BLC: auto

Heavy-duty camera

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 12pcs

IR distance: 15m

Waterproof rate: IP69

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Current consumption: max. 200mA

Power supply: DC 12V

Operating temperatures: -20 to 70°C, RH95 maximum

Storage temp range: -40 to 80°C/RH95 maximum

Chip Sony 420/480/520/560 lines
