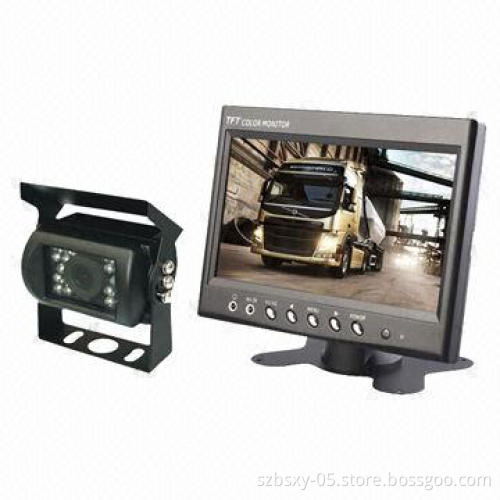

Audio Camera Rearview System with 7-inch Monitor Rear View Cameras for RV Trucks
  • Audio Camera Rearview System with 7-inch Monitor Rear View Cameras for RV Trucks
Audio Camera Rearview System with 7-inch Monitor Rear View Cameras for RV Trucks

Audio Camera Rearview System with 7-inch Monitor Rear View Cameras for RV Trucks

Get Latest Price
Payment Type:
T/T in Aadvance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Aadvance
Product Description
Product Description
  • Specifications:
    • Dimension: 7-inch color LCD monitor
    • TV System: NTSC/PAL AUTO
    • Resolution: 480 x 3 x RGB x 234
    • Brightness: 300cd/¡
    • Contrast: 300:1
    • Aspect ratio: 16:9
    • Viewing angle: U: 50°/D:60°, R/L:70°
    • Rating: 20,000 hours
    • Products featured function
    • Multiple menu languages: English, Dutch, French, Portuguese,Spanish and Russian
    • With remote control monitors can be optional with loudspeakeror not, users can adjust sound on the control panel or remotecontrol
    • Support 2 cameras video simultaneous input
    • Support 1 cameras audio simultaneous input
    • Separate trigger control wire on second camera
    • Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops
    • In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image
    • Working voltage: 12V
    • Working current: 300MA
    • Image device: 1/4 Sharp CCD
    • Resolution: 420TV lines
    • TV system: PAL/NTSC
    • Effective pixels: 512 x 582 pixels/512 x 492 pixels
    • Sensing area: 3.6 x 2.7mm
    • Scanning system: 2:1 interlace
    • Sync. system: Internal
    • Horizontal sync. frequency: 15.625/15.734KHz
    • Vertical sync. frequency: 50/60Hz
    • Minimum illumination: 0Lux (infrared lamps on) 0.1Lux(day)/F1.2
    • Video output: 1.0vp-p, 75Ohm
    • Gamma consumption: 0.45
    • AGC: Auto
    • S/N ratio: Better than 48dB
    • White balance: Auto
    • Electronic shutter: 1/60 (NTSC)/1/50(PAL) ~ 1/10,000seconds
    • BLC: Auto
  • Products idiomatic performance:
    • Lens: 2.5mm
    • Lens angle: 120°
    • Infrared LED light: 18PCS
    • IR distance: 15m
    • Waterproof rate:IP68
    • Shell material: aluminum alloy
    • Bracket material: Iron
    • Dust-proof, waterproof, hydrochloric acid prevention andexplosion prevention
    • Current consumption: Max 200mA
    • Power supply: DC 12V
    • Operating temperatures: -20C~70°C, RH 95 max
    • Storage temperatures: -40~80°C, RH 95 max
  • Dimension: 7-inch color LCD monitor
  • TV System: NTSC/PAL AUTO
  • Resolution: 480 x 3 x RGB x 234
  • Brightness: 300cd/¡
  • Contrast: 300:1
  • Aspect ratio: 16:9
  • Viewing angle: U: 50°/D:60°, R/L:70°
  • Rating: 20,000 hours
  • Products featured function
  • Multiple menu languages: English, Dutch, French, Portuguese,Spanish and Russian
  • With remote control monitors can be optional with loudspeakeror not, users can adjust sound on the control panel or remotecontrol
  • Support 2 cameras video simultaneous input
  • Support 1 cameras audio simultaneous input
  • Separate trigger control wire on second camera
  • Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops
  • In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image
  • Working voltage: 12V
  • Working current: 300MA
  • Image device: 1/4 Sharp CCD
  • Resolution: 420TV lines
  • TV system: PAL/NTSC
  • Effective pixels: 512 x 582 pixels/512 x 492 pixels
  • Sensing area: 3.6 x 2.7mm
  • Scanning system: 2:1 interlace
  • Sync. system: Internal
  • Horizontal sync. frequency: 15.625/15.734KHz
  • Vertical sync. frequency: 50/60Hz
  • Minimum illumination: 0Lux (infrared lamps on) 0.1Lux(day)/F1.2
  • Video output: 1.0vp-p, 75Ohm
  • Gamma consumption: 0.45
  • AGC: Auto
  • S/N ratio: Better than 48dB
  • White balance: Auto
  • Electronic shutter: 1/60 (NTSC)/1/50(PAL) ~ 1/10,000seconds
  • BLC: Auto
  • Lens: 2.5mm
  • Lens angle: 120°
  • Infrared LED light: 18PCS
  • IR distance: 15m
  • Waterproof rate:IP68
  • Shell material: aluminum alloy
  • Bracket material: Iron
  • Dust-proof, waterproof, hydrochloric acid prevention andexplosion prevention
  • Current consumption: Max 200mA
  • Power supply: DC 12V
  • Operating temperatures: -20C~70°C, RH 95 max
  • Storage temperatures: -40~80°C, RH 95 max
