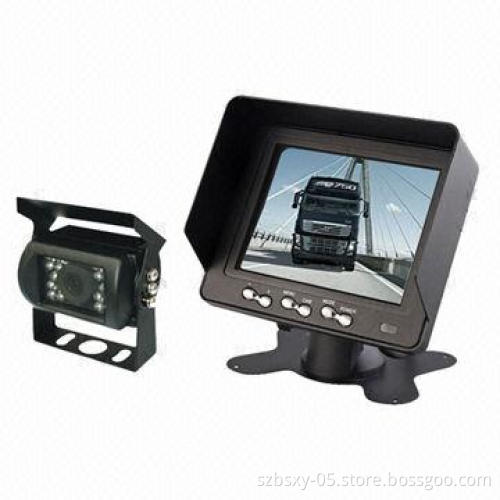

Car Reversing Camera System with 5-inch Monitor Rear View Cameras for Buses

Get Latest Price

Payment Type:: T/T in Aadvance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Aadvance

Product Description

Specifications:

Dimension: 5-inch color monitor
TV System: NTSC/PAL AUTO
Resolution: 480 x 3 x RGB x 234
Brightness: 300cd/¡
Contrast: 300:1
Aspect ratio: 16:9
Viewing angle: U: 50°/D:60°, R/L:70°
Rating: 20,000 hours
Products featured function
Multiple menu languages: English, Dutch, French, Portuguese,Spanish and Russian
With remote control monitors can be optional with loudspeakeror not, users can adjust sound on the control panel or remotecontrol
Support 2 cameras video simultaneous input
Support 1 cameras audio simultaneous input
Separate trigger control wire on second camera
Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops
In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image
Working voltage: 12V
Working current: 300MA
Image device: 1/4 Sharp CCD
Resolution: 420TV lines
TV system: PAL/NTSC
Effective pixels: 512 x 582 pixels/512 x 492 pixels
Sensing area: 3.6 x 2.7mm
Scanning system: 2:1 interlace
Sync. system: Internal
Horizontal sync. frequency: 15.625/15.734KHz
Vertical sync. frequency: 50/60Hz
Minimum illumination: 0Lux (infrared lamps on) 0.1Lux(day)/F1.2
Video output: 1.0vp-p, 75Ohm
Gamma consumption: 0.45
AGC: Auto
S/N ratio: Better than 48dB
White balance: Auto
Electronic shutter: 1/60 (NTSC)/1/50(PAL) ~ 1/10,000seconds
BLC: Auto

Products idiomatic performance:

Lens: 2.5mm
Lens angle: 120°
Infrared LED light: 18PCS
IR distance: 15m
Waterproof rate:IP68
Shell material: aluminum alloy
Bracket material: Iron
Dust-proof, waterproof, hydrochloric acid prevention andexplosion prevention
Current consumption: Max 200mA
Power supply: DC 12V
Operating temperatures: -20~70°C, RH 95 max
Storage temperatures: -40~80°C, RH 95 max

Dimension: 5-inch color monitor

TV System: NTSC/PAL AUTO

Resolution: 480 x 3 x RGB x 234

Brightness: 300cd/¡

Contrast: 300:1

Aspect ratio: 16:9

Viewing angle: U: 50°/D:60°, R/L:70°

Rating: 20,000 hours

Products featured function

Multiple menu languages: English, Dutch, French, Portuguese,Spanish and Russian

With remote control monitors can be optional with loudspeakeror not, users can adjust sound on the control panel or remotecontrol

Support 2 cameras video simultaneous input

Support 1 cameras audio simultaneous input

Separate trigger control wire on second camera

Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops

In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image

Working voltage: 12V

Working current: 300MA

Image device: 1/4 Sharp CCD

Resolution: 420TV lines

TV system: PAL/NTSC

Effective pixels: 512 x 582 pixels/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Sync. system: Internal

Horizontal sync. frequency: 15.625/15.734KHz

Vertical sync. frequency: 50/60Hz

Minimum illumination: 0Lux (infrared lamps on) 0.1Lux(day)/F1.2

Video output: 1.0vp-p, 75Ohm

Gamma consumption: 0.45

AGC: Auto

S/N ratio: Better than 48dB

White balance: Auto

Electronic shutter: 1/60 (NTSC)/1/50(PAL) ~ 1/10,000seconds

BLC: Auto

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 18PCS

IR distance: 15m

Waterproof rate:IP68

Shell material: aluminum alloy

Bracket material: Iron

Dust-proof, waterproof, hydrochloric acid prevention andexplosion prevention

Current consumption: Max 200mA

Power supply: DC 12V

Operating temperatures: -20~70°C, RH 95 max

Storage temperatures: -40~80°C, RH 95 max
