High Resolution 7-inch Digital Quad Monitor, Car Rear-view Camera for Bus

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

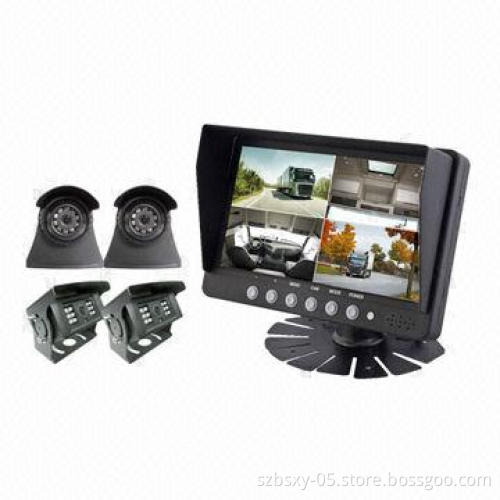

Rear-view system:

7-inch digital quad monitor
Color CCD waterproof camera
Rear-view camera/dome camera
With CE/FCC/RoHS/E-mark standards

7-inch digital LCD quad monitor:

MDL#: JY-M730Q
Video input: 4-channel input with Quad function
Type: 16:9 wide screen
Resolution: 800 RGB x 480 dots
Color system: auto
Power requirement: 12/32V DC
Power consumption: d8.64W
Operating temperatures: -10 to 65°C
Mirror/normal switch: yes
Speaker: Yes (4 audio)

Rear-view camera:

MDL#: JY-675
Sensor: 1/4 sharp CCD
Resolution:
- N: 510 x 492 pixels
- P: 500 x 582 pixels
Lens: 2.5Mm
Minimum illumination: 0 Lux (LED on)
IR LEDs: 18 pieces
Night vision distance: 45ft
Viewing angle: 120°
Waterproof: IP69K
Voltage: 12V
Operating temperatures: -20 to 70

Rear-view camera:

MDL#: JY-6731
Sensor: 1/4 sharp CCD
Resolution:
- N: 510 x 492 pixels
- P: 500 x 582 pixels
Lens: 1.7mm
Minimum illumination: 0 Lux (LED on)
IR LEDs: 12 pieces
Night vision distance: 40ft
Viewing angle: 170°
Waterproof: IP69K
Voltage: 12V
Operating temperatures: -20 to 70

Features:

Monitors can be optional with loudspeaker or not, users canadjust sound on the control
Supports 4 cameras video and 4 cameras audio simultaneousinput
Can repeat the viewing picture, 1-60secs can be adjusted
Single, dual, triple, quad image for optional
Separate trigger control wire on each camera
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid and explosionprevention
Multiple menu languages:English/Dutch/French/Spanish/Russian/German/Italic
Mic: collects the environmental sound around the camera
Self heating: the cameras enters the self-heating mode when theenvironmental working temperature is lower than -5°C
And it will automatically stop heating when the temperaturereaches 30°C
Superficial colors are optional: black/white/silver
Working voltage: 12V
Self-protect of the DC voltage at the short-circuit

7-inch digital quad monitor

Color CCD waterproof camera

Rear-view camera/dome camera

With CE/FCC/RoHS/E-mark standards

MDL#: JY-M730Q

Video input: 4-channel input with Quad function

Type: 16:9 wide screen

Resolution: 800 RGB x 480 dots

Color system: auto

Power requirement: 12/32V DC

Power consumption: d8.64W

Operating temperatures: -10 to 65°C

Mirror/normal switch: yes

Speaker: Yes (4 audio)

MDL#: JY-675

Sensor: 1/4 sharp CCD

Resolution:

N: 510 x 492 pixels
P: 500 x 582 pixels

Lens: 2.5Mm

Minimum illumination: 0 Lux (LED on)

IR LEDs: 18 pieces

Night vision distance: 45ft

Viewing angle: 120°

Waterproof: IP69K

Voltage: 12V

Operating temperatures: -20 to 70

N: 510 x 492 pixels

P: 500 x 582 pixels

MDL#: JY-6731

Sensor: 1/4 sharp CCD

Resolution:

N: 510 x 492 pixels
P: 500 x 582 pixels

Lens: 1.7mm

Minimum illumination: 0 Lux (LED on)

IR LEDs: 12 pieces

Night vision distance: 40ft

Viewing angle: 170°

Waterproof: IP69K

Voltage: 12V

Operating temperatures: -20 to 70

N: 510 x 492 pixels

P: 500 x 582 pixels

Monitors can be optional with loudspeaker or not, users canadjust sound on the control

Supports 4 cameras video and 4 cameras audio simultaneousinput

Can repeat the viewing picture, 1-60secs can be adjusted

Single, dual, triple, quad image for optional

Separate trigger control wire on each camera

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid and explosionprevention

Multiple menu languages:English/Dutch/French/Spanish/Russian/German/Italic

Mic: collects the environmental sound around the camera

Self heating: the cameras enters the self-heating mode when theenvironmental working temperature is lower than -5°C

And it will automatically stop heating when the temperaturereaches 30°C

Superficial colors are optional: black/white/silver

Working voltage: 12V

Self-protect of the DC voltage at the short-circuit
