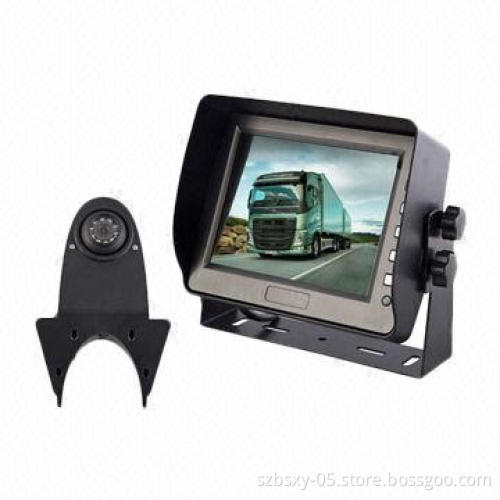

Camera and monitor systems, suitable for emergency response vehicles and ladder trucks
  • Camera and monitor systems, suitable for emergency response vehicles and ladder trucks
Camera and monitor systems, suitable for emergency response vehicles and ladder trucks

Camera and monitor systems, suitable for emergency response vehicles and ladder trucks

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Specifications:
    • Dimension: 5.6-inch digital color LCD monitor
    • TV System: NTSC/PAL auto
    • Resolution: 640 x 3 x (RGB) x 480 pixels
    • Brightness: 250cd/¡
    • Contrast: 500 :1
    • lattice distance: 0.0588 (H) x 0.1764 (V)
    • Aspect ratio: 4:3
    • Viewing angle: U: 50°/D: 70°, R/L: 70°
    • Rating: 20,000 hours
    • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German
    • With remote control
    • Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
    • Screen display mode can be switched the day mode & nightmode by pressing button
    • Supports 2 cameras video simultaneous input
    • Supports 2 cameras audio simultaneous input
    • Normal or mirrored picture can be switched separately on eachcamera
    • Separate trigger control wire on each camera
    • Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
    • The trigger delay time can be adjusted (0-4s) on eachcamera
    • Image device: 1/4 Sharp CCD
    • Resolution: 420TV lines
    • TV systems: PAL/NTSC
    • Effective pixels: 512 x 582 pixels/512 x 492 pixels
    • Sensing area: 3.6 x 2.7mm
    • Scanning system: 2:1 Interlace
    • Sync. system: Internal
    • Horizontal sync. frequency: 15.625/15.734KHz
    • Vertical sync. frequency: 50/60Hz
    • Minimum Illumination: 0Lux (Infrared lamps on),0.1Lux(day)/F1.2
    • Video output: 1.0vp-p, 75 Ohms
    • Gamma consumption: 0.45
    • AGC: Auto
    • S/N ratio: Better than 48dB
    • White balance: Auto
    • Electronic shutter: 1/60(NTSC)/1/50(PAL)~1/10,000 seconds
    • BLC: Auto
  • Performance:
    • Lens: 2.5mm
    • Angle: 120°
    • Infrared LED light: 9pcs
    • IR distance: 10m
    • Waterproof rate: IP68
    • Shell material: aluminum alloy
    • Bracket material: nylon fabric
    • Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
    • Current consumption: Maximum 180mA
    • Power supply: DC 12V
  • Dimension: 5.6-inch digital color LCD monitor
  • TV System: NTSC/PAL auto
  • Resolution: 640 x 3 x (RGB) x 480 pixels
  • Brightness: 250cd/¡
  • Contrast: 500 :1
  • lattice distance: 0.0588 (H) x 0.1764 (V)
  • Aspect ratio: 4:3
  • Viewing angle: U: 50°/D: 70°, R/L: 70°
  • Rating: 20,000 hours
  • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German
  • With remote control
  • Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
  • Screen display mode can be switched the day mode & nightmode by pressing button
  • Supports 2 cameras video simultaneous input
  • Supports 2 cameras audio simultaneous input
  • Normal or mirrored picture can be switched separately on eachcamera
  • Separate trigger control wire on each camera
  • Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
  • The trigger delay time can be adjusted (0-4s) on eachcamera
  • Image device: 1/4 Sharp CCD
  • Resolution: 420TV lines
  • TV systems: PAL/NTSC
  • Effective pixels: 512 x 582 pixels/512 x 492 pixels
  • Sensing area: 3.6 x 2.7mm
  • Scanning system: 2:1 Interlace
  • Sync. system: Internal
  • Horizontal sync. frequency: 15.625/15.734KHz
  • Vertical sync. frequency: 50/60Hz
  • Minimum Illumination: 0Lux (Infrared lamps on),0.1Lux(day)/F1.2
  • Video output: 1.0vp-p, 75 Ohms
  • Gamma consumption: 0.45
  • AGC: Auto
  • S/N ratio: Better than 48dB
  • White balance: Auto
  • Electronic shutter: 1/60(NTSC)/1/50(PAL)~1/10,000 seconds
  • BLC: Auto
  • Lens: 2.5mm
  • Angle: 120°
  • Infrared LED light: 9pcs
  • IR distance: 10m
  • Waterproof rate: IP68
  • Shell material: aluminum alloy
  • Bracket material: nylon fabric
  • Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
  • Current consumption: Maximum 180mA
  • Power supply: DC 12V
