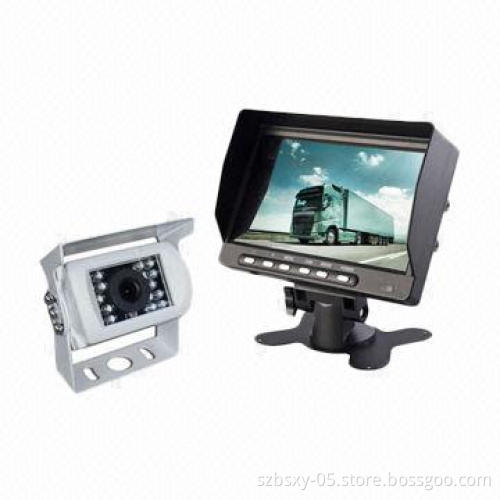

Auto car rear-view system with digital cad monitor night vision cameras for trucks
  • Auto car rear-view system with digital cad monitor night vision cameras for trucks
Auto car rear-view system with digital cad monitor night vision cameras for trucks

Auto car rear-view system with digital cad monitor night vision cameras for trucks

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Specifications:
    • Dimension: 7-nch color LCD monitor
    • TV system: NTSC/PAL auto
    • Resolution 800 X 3 XRGB X480
    • Brightness: 400cd/¡
    • Contrast: 300:1
    • Aspect ratio: 169
    • Viewing angles: U: 50°/D: 60°, R/L: 70°
    • Rating: 20,000 hours
    • Products featured function
    • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian,
    • With remote control
    • Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
    • Supports 2 cameras video simultaneous input
    • Supports 1cameras audio simultaneous input
    • Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops
    • In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image
    • Working voltages: 12 ~ 24V
    • Working current: 300mA
    • Self-protect of the DC voltage at the short-circuit
    • Image device: 1/4 SHARP CCD
    • Resolution: 420TV lines
    • Effective pixels: 512 x 582 pixels/512 x 492 pixels
    • Sensing area: 3.6mm x 2.7mm
    • Scanning system: 2:1 interlace
    • Sync. system: Internal
    • Horizontal sync. frequency: 15.625KHz/15.734KHz
    • Vertical sync. frequency: 50Hz/60Hz
    • Minimum illumination: 0Lux (Infrared lamps on)0.1Lux(day)/F1.2
    • Video output: 1.0vp-p, 75Ohm
    • Gamma consumption: 0.45
    • AGC: Auto
    • S/N ratio: Better than 48dB
    • White balance: Auto
    • Electronic shutter range: 1/60 (NTSC)/1/50 (PAL)~1/10,000seconds
    • BLC: Auto
  • Performance:
    • Lens: 2.5mm
    • Angle: 120°
    • Infrared LED light: 18pcs
    • IR distance: 15m
    • Waterproof rate: IP68
    • Shell material: aluminum alloy
    • Bracket material: nylon fabric
  • Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
  • Current consumption: Maximum 180mA
  • Power supply: DC 12V
  • Operating temperatures: -20~70°C, RH95% maximum
  • Storage temperatures: -40~80°C, RH95% maximum
  • Dimension: 7-nch color LCD monitor
  • TV system: NTSC/PAL auto
  • Resolution 800 X 3 XRGB X480
  • Brightness: 400cd/¡
  • Contrast: 300:1
  • Aspect ratio: 169
  • Viewing angles: U: 50°/D: 60°, R/L: 70°
  • Rating: 20,000 hours
  • Products featured function
  • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian,
  • With remote control
  • Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
  • Supports 2 cameras video simultaneous input
  • Supports 1cameras audio simultaneous input
  • Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops
  • In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image
  • Working voltages: 12 ~ 24V
  • Working current: 300mA
  • Self-protect of the DC voltage at the short-circuit
  • Image device: 1/4 SHARP CCD
  • Resolution: 420TV lines
  • Effective pixels: 512 x 582 pixels/512 x 492 pixels
  • Sensing area: 3.6mm x 2.7mm
  • Scanning system: 2:1 interlace
  • Sync. system: Internal
  • Horizontal sync. frequency: 15.625KHz/15.734KHz
  • Vertical sync. frequency: 50Hz/60Hz
  • Minimum illumination: 0Lux (Infrared lamps on)0.1Lux(day)/F1.2
  • Video output: 1.0vp-p, 75Ohm
  • Gamma consumption: 0.45
  • AGC: Auto
  • S/N ratio: Better than 48dB
  • White balance: Auto
  • Electronic shutter range: 1/60 (NTSC)/1/50 (PAL)~1/10,000seconds
  • BLC: Auto
  • Lens: 2.5mm
  • Angle: 120°
  • Infrared LED light: 18pcs
  • IR distance: 15m
  • Waterproof rate: IP68
  • Shell material: aluminum alloy
  • Bracket material: nylon fabric
