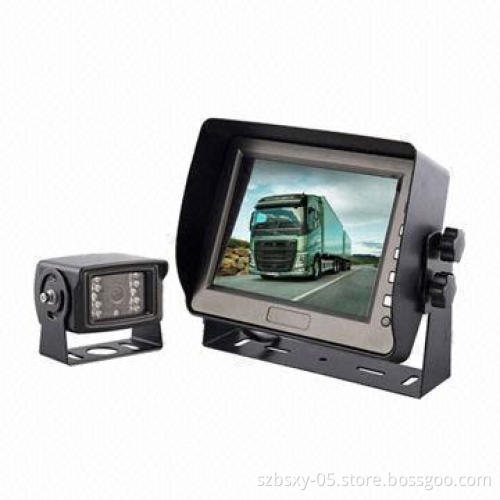

CCTV Camera, Monitor Systems Vision Solutions Suitable for Professional Use On and Off Road Machine

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Specifications:

Dimension: 5.6-inch digital color LCD monitor
TV System: NTSC/PAL auto
Resolution: 640 x 3 x (RGB) x 480 pixels
Brightness: 250cd/m²
Contrast: 500:1
Lattice distance (H x V): 0.0588 x 0.1764
Aspect ratio: 4:3
Viewing angle:
- U: 50°
- D: 70°
- R/L: 70°
Rating: 20,000 hours
Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German
With remote control
Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
Screen display mode can be switched the day mode & nightmode by pressing button
Supports 2 cameras video simultaneous input
Supports 2 cameras audio simultaneous input
Normal or mirrored picture can be switched separately on eachcamera
Separate trigger control wire on each camera
Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
The trigger delay time can be adjusted (0-4 seconds) on eachcamera
Image device: 1/4 sharp CCD
Resolution: 420TVL
TV system: PAL/NTSC
Effective pixels: 512 x 582/512 x 492 pixels
Sensing area: 3.6 x 2.7mm
Scanning system: 2:1 interlace
Sync system: Internal
Horizontal sync frequency: 15.625/15.734kHz
Vertical sync frequency: 50/60Hz
Minimum illumination: 0 Lux (infrared lamps on), 0.1 Lux(day)/F1.2
Video output: 1.0Vp-p, 75 Ohms
Gamma consumption: 0.45
AGC: auto
S/N ratio: better than 48dB
White balance: auto
Electronic shutter: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds
BLC: auto
Performance:
- Lens: 2.5mm
- Angle: 120°
Infrared LED light: 9 pieces
IR distance: 10m
Waterproof rate: IP68
Shell material: aluminum alloy
Bracket material: nylon fabric
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Current consumption: 180mA (maximum)
Power supply: 12V DC

Dimension: 5.6-inch digital color LCD monitor

TV System: NTSC/PAL auto

Resolution: 640 x 3 x (RGB) x 480 pixels

Brightness: 250cd/m²

Contrast: 500:1

Lattice distance (H x V): 0.0588 x 0.1764

Aspect ratio: 4:3

Viewing angle:

U: 50°
D: 70°
R/L: 70°

Rating: 20,000 hours

Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German

With remote control

Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control

Screen display mode can be switched the day mode & nightmode by pressing button

Supports 2 cameras video simultaneous input

Supports 2 cameras audio simultaneous input

Normal or mirrored picture can be switched separately on eachcamera

Separate trigger control wire on each camera

Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops

The trigger delay time can be adjusted (0-4 seconds) on eachcamera

Image device: 1/4 sharp CCD

Resolution: 420TVL

TV system: PAL/NTSC

Effective pixels: 512 x 582/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Sync system: Internal

Horizontal sync frequency: 15.625/15.734kHz

Vertical sync frequency: 50/60Hz

Minimum illumination: 0 Lux (infrared lamps on), 0.1 Lux(day)/F1.2

Video output: 1.0Vp-p, 75 Ohms

Gamma consumption: 0.45

AGC: auto

S/N ratio: better than 48dB

White balance: auto

Electronic shutter: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds

BLC: auto

Performance:

Lens: 2.5mm
Angle: 120°

Infrared LED light: 9 pieces

IR distance: 10m

Waterproof rate: IP68

Shell material: aluminum alloy

Bracket material: nylon fabric

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Current consumption: 180mA (maximum)

Power supply: 12V DC

U: 50°

D: 70°

R/L: 70°

Lens: 2.5mm

Angle: 120°
