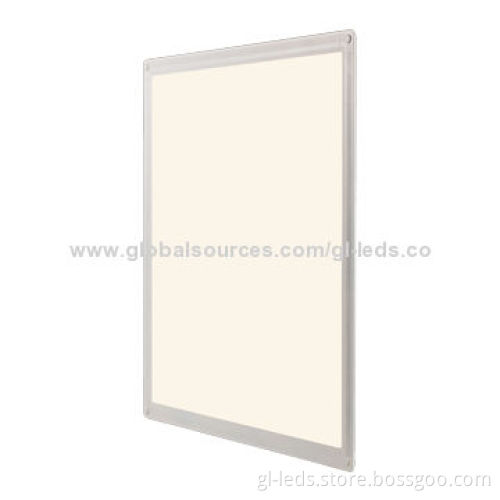

High Lumen Output High Efficiency LED Panel Lamp

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Cash

Product Description

Basic parameter:

Specifications:

Super bright LED as lighting sources

CE certificate, meet the requirements of UL SAA, VDE

Input voltage: 28-36V

Imported light diffusion material, mercury- and lead-free

High lumen output, high efficiency, energy-saving up to 60%

Excellent heat dissipation structure, long lifespan, normal use can reach

over 30,000 hours

Eco-friendly, conform to the requirements of RoHS

Dimensions: 600 x 600 x 8mm

LED type: 2835 SMD

Materials: aluminum + PMMA

Input voltage: 28-36V, 1.1A

Working temperature: -10 to 40°C

Installation method: embedded/hanging

IP rate: IP41

Net weight (±0.1kg): 3.18kg

LED power: 35W

Quantity in series and parallel: 10S 9P x 2

LED quantity: 180 pieces 2835 SMD

Drive current: 56mA

Beam way: beam at two sides

Photo-electricity

CCT: 2,900-6,500K

Luminous flux (±10%): 3,200lm

Input power: 40W

Light efficiency (±10%): 80lm/W

CRI: >80Ra

Lux at 2 meters (±10%): 210 lux

Dimmable

Lighting angle: 120°

Power factor: >9.0
