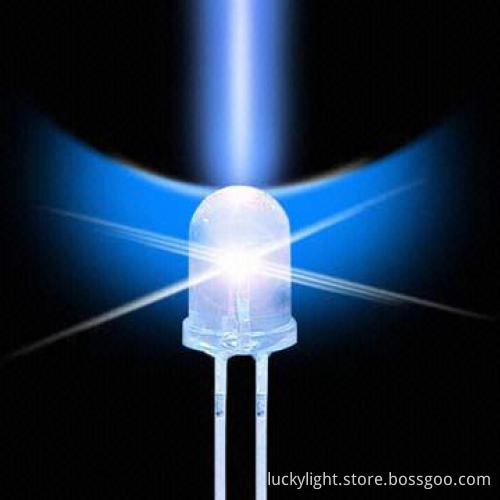

5mm Round Blue LED with 470nm Wavelength, 15° Viewing Angle

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

5mm LED lamp

Luminous intensity range: 1,800 to 3,400lm

Emitted color: blue

Lens type: water clear

Dominant wavelength: 470nm

Viewing angle: 15°

Forward voltages: 3.3 to 3.8V

Forward current: 20mA

Peak forward current: 100mA

Reverse voltage: 6V

Power dissipation: 112mW

Electrostatic discharge: 1,000V

Operating temperatures: -30 to 80°C

Storage temperatures: -30 to 80°C

Low power consumption

Packaging: 500pcs/bag

InGaN is the most efficient and cost effective material forLEDs in the blue region of the spectrum

The 470nm typical dominant wavelength for blue are well suitedto color mixing in full color signs

Applications: ideal for commercial outdoor signs, automotiveinterior lights, front panel indicators front panelbacklighting
