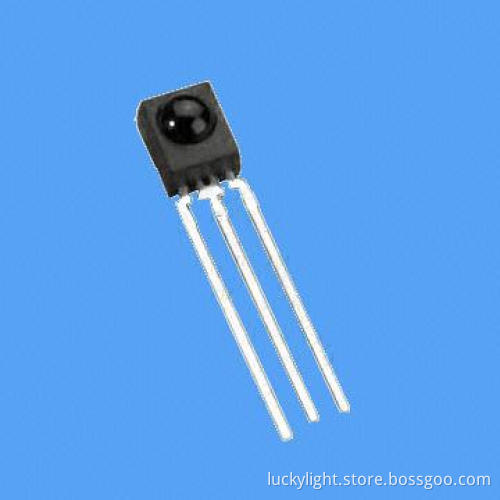

Infrared Remote-control Receiver Module Photodiode, -40 to 85°C Operating Temperature

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

High-photo sensitivity

Improved shielding against electrical field disturbance

Low-power consumption

Suitable burst length: e10 cycles/burst

TTL and CMOS compatibility

Improved immunity against ambient light

Internal filter for PCM frequency

Long reception distance, 14m

Compliant with the RoHS Directive

Specifications:

Supply voltages: 0 to 6V

Operating temperatures: -40 to 85°C

Storage temperatures: -40 to 100°C

Soldering temperature: 260°C for 5 seconds

Consumption current: 1.3mA

BPF center frequency: 38kHz

Peak wavelength: 940nm

Reception distance: 14m

Applications:

Infrared applied system

Light detecting portion of remote control

AV instrument such as audio, TV, VCR, CD and MD

CATV set top boxes

The other equipment with wireless remote control

Home appliance such as air conditioner and fan

Multimedia equipment
