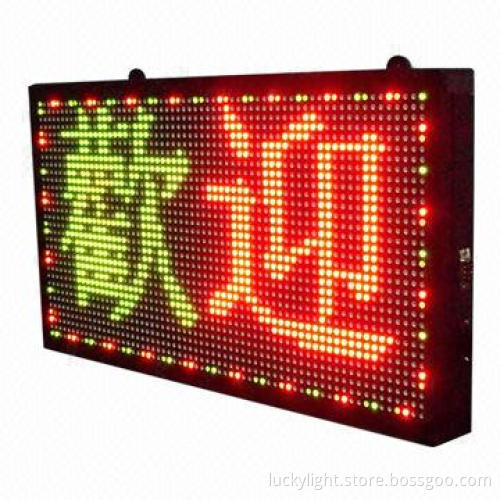

LED Display Panel, P10, Red, Green, Outdoor
  • LED Display Panel, P10, Red, Green, Outdoor
LED Display Panel, P10, Red, Green, Outdoor

LED Display Panel, P10, Red, Green, Outdoor

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Pixel pitch: 10mm
    • Lifespan: 100,000 hours
    • Pixel density: 10,000 pixels/m²
    • Module size: 320 x 160mm
    • LED driving mode: constant currency 1/4 scan
    • LED encapsulation: DIP 546
    • Viewing angle (H/V): 90º
    • Optimal viewing distance: 12m
    • Brightness: 4,500-5,000cd/m²
  • Protection:
    • Front: IP65
    • Rear: IP54
  • Pixel configuration: 1R1G
  • Consumption: 600W/m² (maximum)
  • Current: 5V DC
  • Temperature and humidity:
    • Storage: -30 to +80°C and 10 to 99% RH
    • Working: -20 to +60°C and 10 to 99% RH
  • Gap between module: d1mm
  • EMI: meet EMC standard
  • Pixel pitch: 10mm
  • Lifespan: 100,000 hours
  • Pixel density: 10,000 pixels/m²
  • Module size: 320 x 160mm
  • LED driving mode: constant currency 1/4 scan
  • LED encapsulation: DIP 546
  • Viewing angle (H/V): 90º
  • Optimal viewing distance: 12m
  • Brightness: 4,500-5,000cd/m²
  • Front: IP65
  • Rear: IP54
  • Storage: -30 to +80°C and 10 to 99% RH
  • Working: -20 to +60°C and 10 to 99% RH
