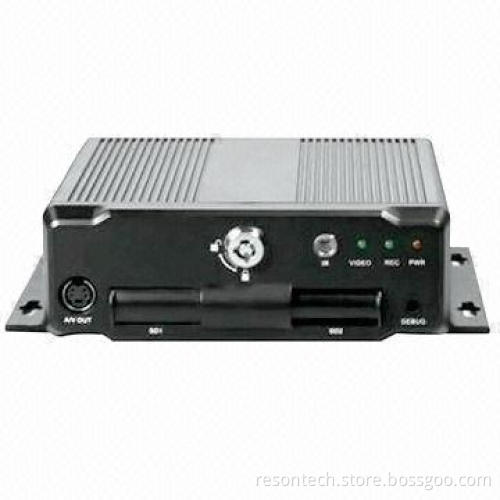

SD Card Mobile DVR for H.264 Compression and 1CH D1+3CH CIF Resolution, 2 SD Cards, RJ45 Ethernet

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

4CH video and audio input with special plug
H.264 for 1CH D1 + 3CH CIF record resolution
Supports independent dual stream network transmission
Built-in heater module (optional)
Built-in CAN bus interface
Support external G-sensor (optional)
Support alarming picture snapshot
4CH alarm-in and 2CH alarm-out
Mature shockproof design

Specifications:

Operating system: Linux
Video input: 4 channels, 1.0Vp-p, 75Ω
Video output: 1 channel, 1.0Vp-p, 75Ω
Compression: H.264
Image resolution:
- D1:
  - PAL: 704 x 576 pixels
  - NTSC: 704 x 480 pixels
- CIF:
  - PAL: 352 x 288 pixels
  - NTSC: 352 x 240 pixels
Record resolution: D1 and CIF
Dual stream network transmission: independent CIF
Playback video frame:
- PAL: 1 to 25fps
- NTSC: 1 to 30fps
Record code rate: 16kbps, 2Mbps adjustable, definable
Audio compression: PCM
Audio input: 4 channels, 3Vp-p line, 1kΩ
Audio output: 1 channel, 2Vp-p line, 600Ω
Communication ports: RJ45, RS232, RS422, RS485, USB, S-video and CAN bus
Storage: dual SD card
G-Sensor: external (optional)
Independent vehicle status: door, left/right turn, brake, reverse and speed
Alarm-in: 4CH, passive
Alarm-out: 2CH, active
Record mode: continuous, cycle and alarm
Video search mode: by channel, time, record type and record path
Text overlay: supported (plate number, time and vehicle status)
On type: schedule, ignition
Off type: schedule, off delay after ignition off (0 to 60 minutes)
Heater module: optional
Power consumption: 6W (without communication module)
Independent output power: 5 or 12V DC at 2A
Input voltage: 8 to 36V

4CH video and audio input with special plug

H.264 for 1CH D1 + 3CH CIF record resolution

Supports independent dual stream network transmission

Built-in heater module (optional)

Built-in CAN bus interface

Support external G-sensor (optional)

Support alarming picture snapshot

4CH alarm-in and 2CH alarm-out

Mature shockproof design

Operating system: Linux

Video input: 4 channels, 1.0Vp-p, 75Ω

Video output: 1 channel, 1.0Vp-p, 75Ω

Compression: H.264

Image resolution:

D1:
- PAL: 704 x 576 pixels
- NTSC: 704 x 480 pixels
CIF:
- PAL: 352 x 288 pixels
- NTSC: 352 x 240 pixels

Record resolution: D1 and CIF

Dual stream network transmission: independent CIF

Playback video frame:

PAL: 1 to 25fps
NTSC: 1 to 30fps

Record code rate: 16kbps, 2Mbps adjustable, definable

Audio compression: PCM

Audio input: 4 channels, 3Vp-p line, 1kΩ

Audio output: 1 channel, 2Vp-p line, 600Ω

Communication ports: RJ45, RS232, RS422, RS485, USB, S-video and CAN bus

Storage: dual SD card

G-Sensor: external (optional)

Independent vehicle status: door, left/right turn, brake, reverse and speed

Alarm-in: 4CH, passive

Alarm-out: 2CH, active

Record mode: continuous, cycle and alarm

Video search mode: by channel, time, record type and record path

Text overlay: supported (plate number, time and vehicle status)

On type: schedule, ignition

Off type: schedule, off delay after ignition off (0 to 60 minutes)

Heater module: optional

Power consumption: 6W (without communication module)

Independent output power: 5 or 12V DC at 2A

Input voltage: 8 to 36V

D1:

PAL: 704 x 576 pixels
NTSC: 704 x 480 pixels

CIF:

PAL: 352 x 288 pixels
NTSC: 352 x 240 pixels

PAL: 704 x 576 pixels

NTSC: 704 x 480 pixels

PAL: 352 x 288 pixels

NTSC: 352 x 240 pixels

PAL: 1 to 25fps

NTSC: 1 to 30fps
