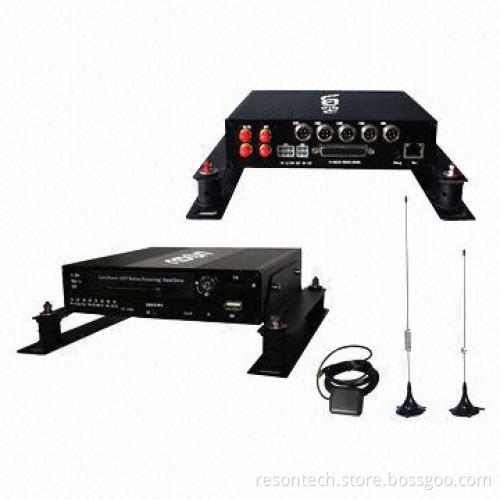

H.264 6/8CH Video Audio Vehicle Mobile DVRs with GPS Module Built-in, CIF Resolution and Wi-Fi Cable

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

H.264 for 8CH CIF record resolution

Independent dual-stream network transmission

Built-in GPS module

Built-in WiFi module

Built-in heater module (optional)

Built-in CANBUS interface

External G-sensor (optional)

Independent 6 vehicle status ports

4ch alarm in and 2CH alarm out

Alarm picture snapshot

8 to 36V power input

Independent 12 and 5V power output

Vent-free enclosure without fan

Operating system: Linux

Video input: 8CH, 1.0Vp-p and 75Ω

Video output: 1CH, 1.0Vp-p and 75Ω

Compression: H.264

Image resolution:

CIF:
- PAL: 352 x 288 pixels
- NTSC: 352 x 240 pixels

Record resolution: CIF

Dual-stream network transmission: independent CIF

Playback video frame: (PAL)1 to 25fps (NTSC)1 to 30fps

Record code rate: 16Kbps to 2Mbps adjustable, definable

Audio compression: PCM

Audio input: 8 channels, 3Vp-p line and 1KΩ

Audio output: 1 channel, 2Vp-p line and 600Ω

Communication ports: RJ45, RS232, RS422, RS485, USB, S-video and CANBUS

Storage: 2.5-inch SATA HDD and maximum 1TB

GPS module: with SiRFchip

Wi-Fi module: 802.11b/g/n

G-Sensor: external (optional)

Vehicle status: independent 6 ports (door, left-turn, right-turn, brake, reverse and speed)

Alarm-in: 4CH alarm input, passive

Alarm-out: 2CH alarm output, electric relay(active)

Record mode: continuous, cycle, alarm

Video search mode: by channel, time, record type and record path

Text overlay: support (plate number, time, vehicle status)

On type: schedule and ignition

Off type: schedule, off delay (0 to 60 minutes) after ignition off

Heater module: optional

Power input: 8 to 36V DC

Power output: 5/12V DC, 2A

Power consumption: 8W (without communication module)

Working temperature: 0 to 60° (customizable)

Working humidity: 10 to 95%

Weight: 1.25kg (without HDD)

Dimension (L x W x H): 176 x 182 x 42mm (without bracket)

CIF:

PAL: 352 x 288 pixels
NTSC: 352 x 240 pixels

PAL: 352 x 288 pixels

NTSC: 352 x 240 pixels
