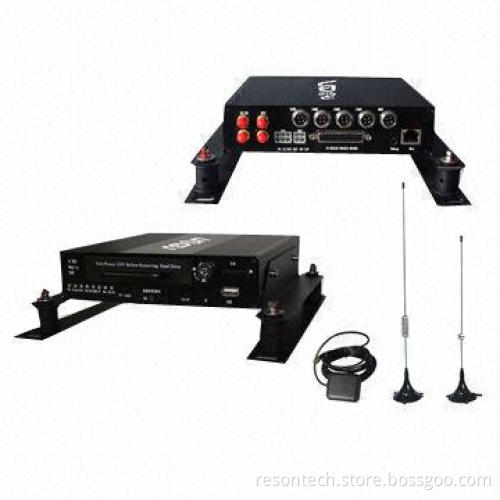

3G HDD Mobile DVR with GPS and Built-in WiFi, CANBus/G-sensor, Supports 4CH Full D1, 3G TD-SCDMA

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

4CH video and audio input with special plug

H.264 for 4CH D1 record resolution

Supports independent dual stream network transmission

Built-in GPS module

Built-in 3G TD-SCDMA modules

Built-in Wi-Fi module

Built-in heater module (optional)

Built-in CANBus interface

Supports external G-sensor (optional)

Independent 6 vehicle status ports, 1 for speed

4ch alarm in, 2ch alarm out

Alarm picture snapshot

8 to 36V power inputs

Independent: 12/5V power output

Operating system: Linux

Video input: 4ch, 1.0Vp-p, 75Ω

Video output: 1CH, 1.0Vp-p, 75Ω

Compression: H.264

Image resolution: D1 (PAL: 704 x 576 pixels, NTSC: 704 x 480 pixels)

Record resolution: D1

Dual stream network transmission: independent CIF

Playback video frame: PAL: 1 to 25fps, NTSC: 1 to 30fps

Record code rate: 16K to 2M adjustable, definable (unit: bps)

Audio compression: PCM

Audio input: 4 channels, 3Vp-p line, 1KΩ

Audio output: 1 channel, 2Vp-p line, 600 Ω

Communication port: RJ45, RS232, RS422, RS485, USB, S-video and CANBus

Storage: 2.5-inch SATA HDD, maximum 1TB

3G module: TD-SCDMA

WiFi module: 802.11b/g/n

GPS module: Sirf chip

G-sensor: external (optional)

Independent 6 vehicle status ports: door, left-turn, right-turn, brake, reverse and speed

Alarm-in: 4CH, passive

Alarm-out : 2CH, electric relay (active)

Record mode: continuous, cycle and alarm

Video search mode: by channel, time, record type and record path

Text overlay: supported (plate number, time and vehicle status)

On type: schedule, ignition

Off type: schedule, off delay (0 to 60 minutes) after ignition off

Heater module: optional

Power input: 8 to 36V DC

Power output: 5/12V DC, 2A

Power consumption: 8W (without communication module)

Work temperature: 0 to 60°C (system work environment temperature, customizable)

Work humidity: 10 to 95%

Weight: 1.25kg (without HDD)

Dimensions (L x W x H): 176 x 182 x 42mm
