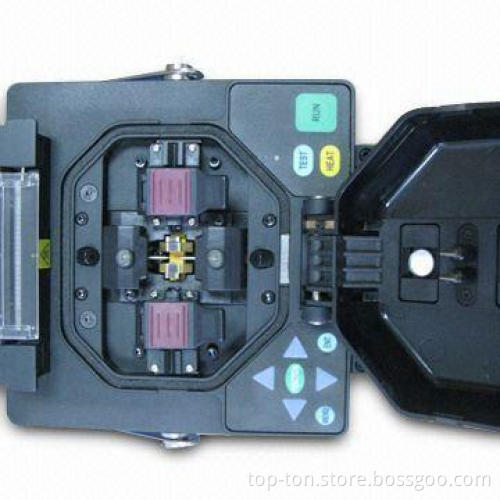

Single Fiber Fusion Splicer with 256 Magnification Color LCD Monitor, RS232 Interface, Video Output

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union

Product Description

Features:

8 seconds splice time, 40 seconds tube-heat time
Simultaneous X and Y views
Tore 8,000 groups of splice results
Average splice loss: 0 to 0.02dB (SM), 0 to 0.01dB (MM)
Languages: English, French, Russian, Spanish, Italian, German,Korean, Portuguese (optional)
Interface: RS232 interface and video output
The cleaver can use 30,000 times, electrode can use 8,000times
Single fiber splice, compatible with the single model ormulti-mode
Cleave length: 250um, 5 to 16mm

8 seconds splice time, 40 seconds tube-heat time

Simultaneous X and Y views

Tore 8,000 groups of splice results

Average splice loss: 0 to 0.02dB (SM), 0 to 0.01dB (MM)

Languages: English, French, Russian, Spanish, Italian, German,Korean, Portuguese (optional)

Interface: RS232 interface and video output

The cleaver can use 30,000 times, electrode can use 8,000times

Single fiber splice, compatible with the single model ormulti-mode

Cleave length: 250um, 5 to 16mm
