90W Universal AC/DC Switching Power Supplies with Manual Voltage

90W Universal AC/DC Switching Power Supplies with Manual Voltage

Get Latest Price

Payment Type:: T/T, Western Union, MoneyGram, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, MoneyGram, PayPal

Product Description

Specifications:

100% brand new
Input voltage/frequency range: 110 to 240V/50 to 60Hz
Output voltage: 12 to 19V, 4.5A, 20/24V, 3.5A (maximum), adjustvoltage by slide SW and then cover the open window

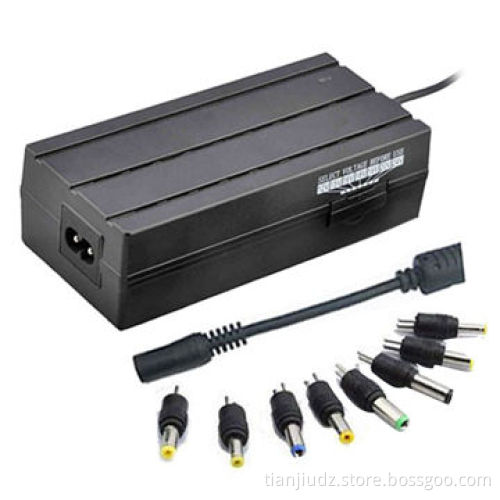

With 8 interchangeable tips, the 8 adapter tips are compatiblewith most major notebooks and laptops
Efficiency: >85%
Working temperature: 0 to 40°C
Storage temperature: 10 to 70°C
Humidity range: 10 to 90% RH
Over-current, short-circuit and over-voltage protections
Usage: used for laptops and other electronic machines, 100%compatible with all kinds of brand laptop adapters for Dell, IBM,HP, Compaq, Sony, Sharp, Acer and Toshiba

8 tips DC connectors:

J2, 4.0 x 1.7 x 10.7mm, DC-F
J3, 4.8 x 1.7 x 10.7mm, DC-F
J4, 5.0 x 3.2 x 10.7mm, pin 1.0
J5, 5.5 x 2.1 x 10.7mm, DC-F
J6, 5.5 x 1.7 x 12mm, DC-F
J7, 5.5 x 2.5 x 12mm, DC-F
J9, 6.5 x 4.3 x 14mm, pin 1.4
J10, 6.3 x 3.0 x 14mm, DC-F

Advantages:

Long lifespan
Low-heat dissipation
Stable voltage output
Good heat-dissipation system
AC input power suitable for the World market

100% brand new

Input voltage/frequency range: 110 to 240V/50 to 60Hz

Output voltage: 12 to 19V, 4.5A, 20/24V, 3.5A (maximum), adjustvoltage by slide SW and then cover the open window

With 8 interchangeable tips, the 8 adapter tips are compatiblewith most major notebooks and laptops

Efficiency: >85%

Working temperature: 0 to 40°C

Storage temperature: 10 to 70°C

Humidity range: 10 to 90% RH

Over-current, short-circuit and over-voltage protections

Usage: used for laptops and other electronic machines, 100%compatible with all kinds of brand laptop adapters for Dell, IBM,HP, Compaq, Sony, Sharp, Acer and Toshiba

J2, 4.0 x 1.7 x 10.7mm, DC-F

J3, 4.8 x 1.7 x 10.7mm, DC-F

J4, 5.0 x 3.2 x 10.7mm, pin 1.0

J5, 5.5 x 2.1 x 10.7mm, DC-F

J6, 5.5 x 1.7 x 12mm, DC-F

J7, 5.5 x 2.5 x 12mm, DC-F

J9, 6.5 x 4.3 x 14mm, pin 1.4

J10, 6.3 x 3.0 x 14mm, DC-F

Long lifespan

Low-heat dissipation

Stable voltage output

Good heat-dissipation system
