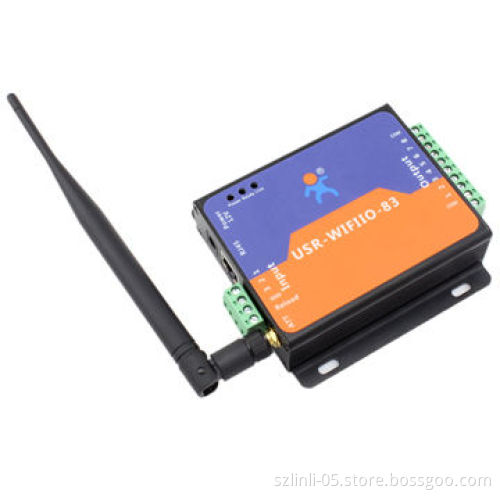

8-channel Wi-Fi Relay Board, Remote Control Switch (USR-WIFIIO-83)New

8-channel Wi-Fi Relay Board, Remote Control Switch (USR-WIFIIO-83)New

Get Latest Price

Payment Type:: T/T, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal or Western Union

Product Description

Description:

USR-WiFiIO-83 device can be connected to surrounding network by Wi-Fi or by direct cable connection (via Ethernet cable interface RJ45) after customer's appropriately setup it
Users can control USR-Wi-FiIO-83 for proper operation with Lonhand software in long distance

Output ports features:

Multiple timing tasks (4 timing tasks for every output)
Lock of output state
All-on
All-off
Self-define start-up state
Touch mode
Jog mode

Parameters:

Dimensions: (L)104.5*(W)83*(H)28.7mm
Supply voltage: 12V DC
Number of ports: 8-output and 3-input
Standby power consumption: typical: 3W, maximum: 6W
Input port operating mode: passive switch
Output ports maximum voltage/current: 250V AC/10A
Operating temperature: -25 to 75°C
Storage temperature: -40 to 85°C
Storage humidity range: 5-95% RH

Packing list:

Antenna*1
USR-Wi-Fi IO-83*1
12V power adapter*1

USR-WiFiIO-83 device can be connected to surrounding network by Wi-Fi or by direct cable connection (via Ethernet cable interface RJ45) after customer's appropriately setup it

Users can control USR-Wi-FiIO-83 for proper operation with Lonhand software in long distance

Multiple timing tasks (4 timing tasks for every output)

Lock of output state

All-on

All-off

Self-define start-up state

Touch mode

Jog mode

Dimensions: (L)104.5*(W)83*(H)28.7mm

Supply voltage: 12V DC

Number of ports: 8-output and 3-input

Standby power consumption: typical: 3W, maximum: 6W
