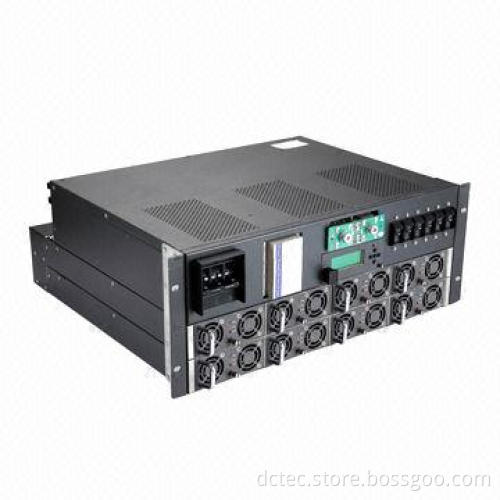

16kW communication system switching power supply with 220/380V AC input and 42 to 58V DC output

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

High power density, high efficiency, high performance, high reliability AC/DC embedded intelligent communication system
Small size and lightweight
Remote monitoring
Widely used in program-controlled switching, optical data transmission and wireless base stations, core driving force of information technology equipment for normal work

Specifications:

System total power: 16KW (8 x 2000W rectifier module)
Configuration: 1 monitoring module, 2 to 8 rectifier modules and AC/DC power distribution integration
EMC: EN 55022 class A
High power density: 20W/cubic inch
Dimensions: (W)482x(H)177x(D)420mm
System unit:
- Input characteristics:
  - Rated input voltage: 220 or 380V AC three-phase, four-wire
  - Frequency range: 45 to 65Hz
  - PF: 0.98
  - Efficiency: 90%
  - Input protection: air switch (60A/3P)
  - Lightning protection (SPD): 20KA/385V AC (8/20μs)
- Output characteristics:
  - Rated output voltage: -53.5V DC
  - Output voltage range: 42 to 58V DC
  - Rated output power: 16kW
  - Maximum output current: 300A
  - Access battery groups: 1 group
  - Loading switch (MCB): 32A/1Px2, 63A/1Px2 and 100A/1Px2
  - Rectifier module plug box and power distribution unit adopts standard 1U modular design to facilitate variety of combinations
  - Load-off protection contractor: 1 x 200A/1P
  - Battery-off protection contractor: 1 x 400A/1p
Rectifier module:
- Input voltage: 90 to 275V AC
- Input voltage range: 42 to 58V DC
- Efficiency: 90%
- PF: 0.98
- Rated output power: 2000W
- Output DC voltage: 42 to 58V DC
- Rated output current: 0 to 37.4A
- Hot-swappable, easy to replace
- Cooling method: forced air-cooled
- Built-in single-chip with RS485 communication function
- With current-distribution function, can realize N+1 redundant backup
- Dimension: (L)295x(W)104x(H)41mm
Monitoring module: using LCD screen display-friendly
