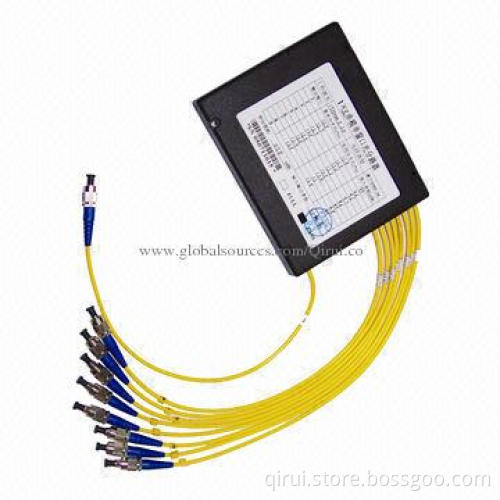

1x8 Fiber-optic PLC splitter
  • 1x8 Fiber-optic PLC splitter
  • 1x8 Fiber-optic PLC splitter
  • 1x8 Fiber-optic PLC splitter
  • 1x8 Fiber-optic PLC splitter
  • 1x8 Fiber-optic PLC splitter
  • 1x8 Fiber-optic PLC splitter
  • 1x8 Fiber-optic PLC splitter
  • 1x8 Fiber-optic PLC splitter
1x8 Fiber-optic PLC splitter
1x8 Fiber-optic PLC splitter
1x8 Fiber-optic PLC splitter
1x8 Fiber-optic PLC splitter
1x8 Fiber-optic PLC splitter
1x8 Fiber-optic PLC splitter
1x8 Fiber-optic PLC splitter
1x8 Fiber-optic PLC splitter

1x8 Fiber-optic PLC splitter

Get Latest Price
Payment Type:
T/T, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union or PayPal
Product Description
Product Description
  • Applications:
    • Low Insertion loss FTTx (FTTB, FTTH, FTTC)
    • Low PDL Passive Optical Networks (PON)
    • High return loss Local Area Networks (LAN)
    • Uniform power splitting CATV systems
    • Compact design test equipment
    • Wide operating wavelength
    • Wide operating temperature
    • Good environmental and mechanical stability
    • Qualified under Telcordia GR-1221 and GR-1209 standards
  • Optical specification:
    • 1xN PLC splitter:
      • Product types: 1x2, 1x3, 1x4, 1x6, 1x8, 1x12, 1x16, 1x24, 1x32, 1x64 1x128
      • Operation wavelength: 1,260-1,650nm
      • Insertion loss (typ). 3.6, 6.0, 7.0, 9.2, 10.3, 12.2, 13.6, 15.8, 16.6, 20.1, 24.5dB
      • Maximum 4.3, 6.2, 7.4, 9.5, 10.7, 12.5, 13.9, 16.0, 17.2, 21.5, 25.5dB
      • Uniformity: 0.5, 0.6, 0.8, 0.8, 0.8, 1.2, 1.4, 1.5, 1.5, 2.0, 2.6dB maximum
      • PDL: 0.2, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.5, 0.8dB maximum
      • TDL: 0.5dB maximum
      • Return loss; ≥55/50dB
      • Directivity: ≥55dB
    • 2xN PLC splitter:
      • Product types: 2x2, 2x4, 2x8, 2x16, 2x32, 2x64, 2x128
      • Operation wavelength: 1,260-1,650nm
      • Insertion loss (typ.): 4, 2, 7.2, 10.6, 13.8, 17.0, 20.5, 24.8dB
      • Maximum 4.5, 7.7, 11.0, 14.8, 17.9, 21.5, 25.8dB
      • Uniformity: 0.8, 1.0, 1.2, 1.5, 1.8, 2.5, 3.0dB maximum
      • PDL: 0.2, 0.3, 0.3, 0.3, 0.3, 0.5, 1.0dB maximum
      • TDL: 0.5dB maximum
      • Return loss: ≥55/50dB
      • Directivity: ≥55dB
      • Note: all the data above does not include connectors
      • UPC connectors: IL add 0.2 dB, APC connectors: IL add 0.3 dB.
  • Environmental conditions:
  • Operating temperature: -40-+85 degrees C
  • Storage temperature: -40-+85 degrees C
  • Operating humidity: ≤93% RH
  • Storage humidity: ≤93% RH
  • Ordering Information: PLCS
    • Structure fiber type package input output length connector
    • Structure 0101=1x1, 0202=2x2, 0164=1x64, 0264=2x64
    • Fiber type 1=G652D, 2=G657A1, 3=G657A2
    • Package dimension: A1, A2, A12, D, E, F, K, U, G, C, T, R, X
    • Input type B=250μm bare fiber, L=900µm loose tube, S=2.0mm, R=3.0mm, 0=Adapter
    • Output type B=250μm bare fiber, L=900µm loose tube, S=2.0mm, R=3.0mm, F=splitter, 0=Adapter
    • Pigtail lengths 05=0.5, 10=1.0, 100=100m, 0=Adapter, 15/10=1.5m input/1.0m output, X=others
    • Connector types: FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, MPO=MPO/UPC, MPA=MPO/APC, FU/FA=FC/UPC input/FC/APC output, 00=none, X=others
    • Packaging information
    • Product types: 1x2, 2x2, 1x3, 1x4
  • Low Insertion loss FTTx (FTTB, FTTH, FTTC)
  • Low PDL Passive Optical Networks (PON)
  • High return loss Local Area Networks (LAN)
  • Uniform power splitting CATV systems
  • Compact design test equipment
  • Wide operating wavelength
  • Wide operating temperature
  • Good environmental and mechanical stability
  • Qualified under Telcordia GR-1221 and GR-1209 standards
  • 1xN PLC splitter:
    • Product types: 1x2, 1x3, 1x4, 1x6, 1x8, 1x12, 1x16, 1x24, 1x32, 1x64 1x128
    • Operation wavelength: 1,260-1,650nm
    • Insertion loss (typ). 3.6, 6.0, 7.0, 9.2, 10.3, 12.2, 13.6, 15.8, 16.6, 20.1, 24.5dB
    • Maximum 4.3, 6.2, 7.4, 9.5, 10.7, 12.5, 13.9, 16.0, 17.2, 21.5, 25.5dB
    • Uniformity: 0.5, 0.6, 0.8, 0.8, 0.8, 1.2, 1.4, 1.5, 1.5, 2.0, 2.6dB maximum
    • PDL: 0.2, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.5, 0.8dB maximum
    • TDL: 0.5dB maximum
    • Return loss; ≥55/50dB
    • Directivity: ≥55dB
  • 2xN PLC splitter:
    • Product types: 2x2, 2x4, 2x8, 2x16, 2x32, 2x64, 2x128
    • Operation wavelength: 1,260-1,650nm
    • Insertion loss (typ.): 4, 2, 7.2, 10.6, 13.8, 17.0, 20.5, 24.8dB
    • Maximum 4.5, 7.7, 11.0, 14.8, 17.9, 21.5, 25.8dB
    • Uniformity: 0.8, 1.0, 1.2, 1.5, 1.8, 2.5, 3.0dB maximum
    • PDL: 0.2, 0.3, 0.3, 0.3, 0.3, 0.5, 1.0dB maximum
    • TDL: 0.5dB maximum
    • Return loss: ≥55/50dB
    • Directivity: ≥55dB
    • Note: all the data above does not include connectors
    • UPC connectors: IL add 0.2 dB, APC connectors: IL add 0.3 dB.
  • Product types: 1x2, 1x3, 1x4, 1x6, 1x8, 1x12, 1x16, 1x24, 1x32, 1x64 1x128
  • Operation wavelength: 1,260-1,650nm
  • Insertion loss (typ). 3.6, 6.0, 7.0, 9.2, 10.3, 12.2, 13.6, 15.8, 16.6, 20.1, 24.5dB
  • Maximum 4.3, 6.2, 7.4, 9.5, 10.7, 12.5, 13.9, 16.0, 17.2, 21.5, 25.5dB
  • Uniformity: 0.5, 0.6, 0.8, 0.8, 0.8, 1.2, 1.4, 1.5, 1.5, 2.0, 2.6dB maximum
  • PDL: 0.2, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.5, 0.8dB maximum
  • TDL: 0.5dB maximum
  • Return loss; ≥55/50dB
  • Directivity: ≥55dB
  • Product types: 2x2, 2x4, 2x8, 2x16, 2x32, 2x64, 2x128
  • Operation wavelength: 1,260-1,650nm
  • Insertion loss (typ.): 4, 2, 7.2, 10.6, 13.8, 17.0, 20.5, 24.8dB
  • Maximum 4.5, 7.7, 11.0, 14.8, 17.9, 21.5, 25.8dB
  • Uniformity: 0.8, 1.0, 1.2, 1.5, 1.8, 2.5, 3.0dB maximum
  • PDL: 0.2, 0.3, 0.3, 0.3, 0.3, 0.5, 1.0dB maximum
  • TDL: 0.5dB maximum
  • Return loss: ≥55/50dB
  • Directivity: ≥55dB
  • Note: all the data above does not include connectors
  • UPC connectors: IL add 0.2 dB, APC connectors: IL add 0.3 dB.
  • Structure fiber type package input output length connector
  • Structure 0101=1x1, 0202=2x2, 0164=1x64, 0264=2x64
  • Fiber type 1=G652D, 2=G657A1, 3=G657A2
  • Package dimension: A1, A2, A12, D, E, F, K, U, G, C, T, R, X
  • Input type B=250μm bare fiber, L=900µm loose tube, S=2.0mm, R=3.0mm, 0=Adapter
  • Output type B=250μm bare fiber, L=900µm loose tube, S=2.0mm, R=3.0mm, F=splitter, 0=Adapter
  • Pigtail lengths 05=0.5, 10=1.0, 100=100m, 0=Adapter, 15/10=1.5m input/1.0m output, X=others
  • Connector types: FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, MPO=MPO/UPC, MPA=MPO/APC, FU/FA=FC/UPC input/FC/APC output, 00=none, X=others
  • Packaging information
  • Product types: 1x2, 2x2, 1x3, 1x4
