16 Ports Media Converter Chassis

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

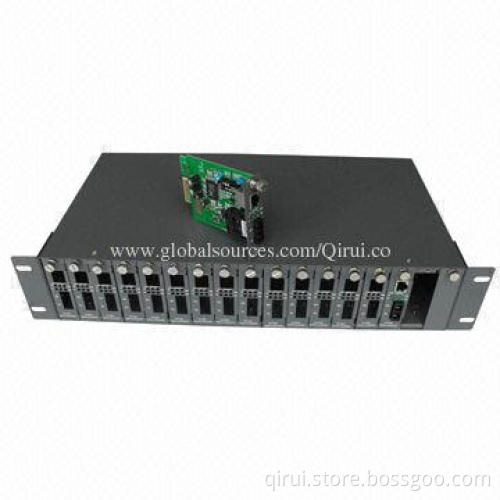

16 slots media converter chassis/16 slots media converter rack mount

Chassis: 19 inches rack mountable managed modular media converter center

Accommodates up to 16 auto sensing media converter modules

Slide-in module on rear for AC/DC power modules

Hot swappable function for converter modules

Modularized design with media converter modules, SNMP module and two system power modules

Visible system status

Supports in-band telnet, SNMP, and web-based management

Supports out-of-band RS-232 console management

Management from anywhere and any platform as using a web browser

Graphic user interface for easy configuration and monitoring of the system

Supports in-band event SNMP trap report

Provides TFTP software for firmware upgrade slide-in media converter modules

Provides media conversion for TP and fiber-optic media types

10/100Mbps modules extend network span from 2km (multimode) to 40km (single mode)

1000Mbps modules extend network span from 220m (multimode) to 10km (single mode)

10/100Mbps, auto-negotiation on TP port

Supports IEEE 802.3 Ethernet frame 64-1,518 bytes and VLAN tagged frame up to 1,522 bytes

Auto MAC address learning and 4,096 MAC address table entries

Supports back-pressure-based flow control on half duplex

Supports pause-frame-based flow control on full duplex

Store and forward technology management

Provides Telnet, SNMP and web browser software over TCP/IP network

Supports Ipv4, TCP, UDP, ICMP, SNMP, MIB-II, TFTP, Telnet and HTTP protocols

Provides telnet operation to:

Set and display IP parameters for the system, SNMP parameters for the SNMP agent function
Monitor system fan status and other system information
Monitor installation status of each slot
Monitor configuration and link status of each module

Set and display IP parameters for the system, SNMP parameters for the SNMP agent function

Monitor system fan status and other system information

Monitor installation status of each slot

Monitor configuration and link status of each module
