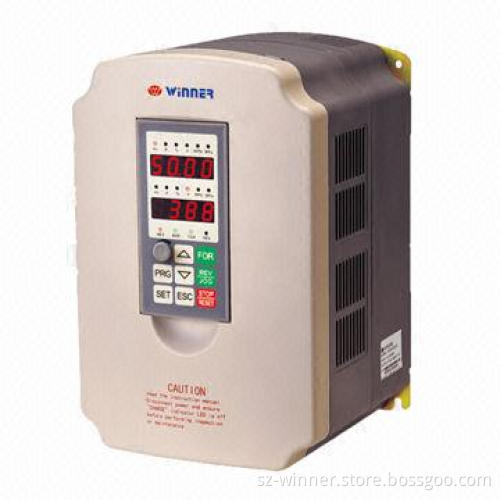

400V Electronic Frequency Converter, 50Hz to 60Hz, 3 Phase

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C or T/T

Product Description

Application area:

Suitable for large inertia, high accuracy, potential energy load, fast response and other high-end occasion

Main features:

Built-in simple PLC
Built-in PID regulator
45kW or below has built-in braking unit
93kW or above has external DC choke
16-step speeds
Traverse operation
Overload: 150%, 2 minutes, 180%, 10 seconds
Continuous operation function at momentary power failure
Perfect fault protection and auto current limit
Positive/negative logic switch input signal for option
43 input terminals and 25 output terminals for option
10 frequency input modes
2 terminals for high-frequency signal input (maximum 50kHz),1 terminal for high-frequency signal output (maximum 50kHz)
2 terminals for analog input, current and voltage are optional for one of the terminal
2 terminals for analog output, current and voltage are optional
RS-485 communication port (MODBUS protocol)
2009, new generation of high performance frequency inverter, WIN-V63 have been launched with 5 national patents
