110V 24-port Connector Heat Cure Oven with FC/ST/D4/SMA/SC Thermometer

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

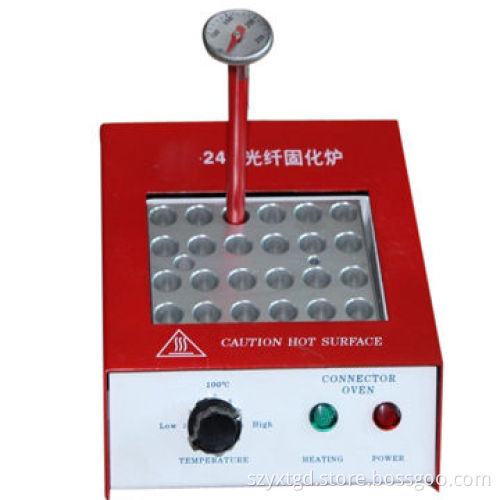

Connector heat cure oven features thermostat control dial, heat on light indicator and power on light indicator

Temperature control allows proper cure of several types of epoxy

Oven comes with standard heat cure block and thermometer

Standard heat cure block can hold up to 24 ST, FC, SC, D4, or SMA connectors

Block is designed to provide even heat distribution and minimize connector heat loss

Temperature control allows proper cure of several types of epoxy

Heat cure blocks for other connectors can be ordered separately such as P/N 9091 for MU/LC, P/N 9091 for MTP and P/N 9090 Universal for FDDI, ST, FC, SC, D4, Biconic and SMA

Also available is optional 9451S cable support

Cable supports provides easy placement of cable cords during heat curing process

Cable supports needs to be ordered separately

Temperature range: room temperature to 160°C

Temperature control precision: ±3°C

Power supply: 110V

Working current: 1.1A

Working power: 132W

Frequency: 50/60Hz

Fuse power: 1.5A

Dimensions: (H)3.25 x(W)5.30x(D)6.75-inch

Weight: 3.8lbs

Power cord: 6ft
