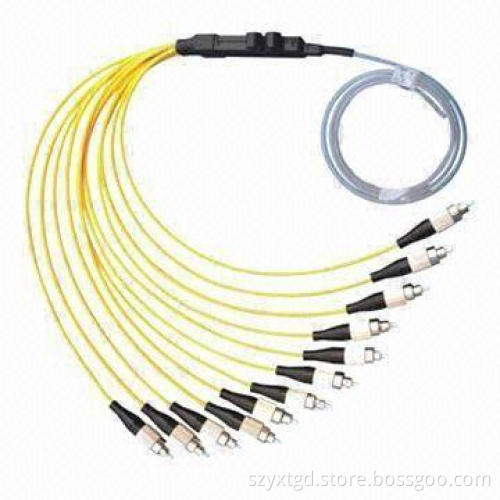

FC Fiber Optic Patch Cord with 15kg Anti-tensile Force and High Reflection Loss, APC MPO

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

MTP/MPO fiber optic patch cord is used in ribbon type multifiber assemblies, unlike simplex or duplex

There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4, 8, 12 and 24 fibers

Features:

Application:

Specifications:

Ordering information:

Minimum order quantity: 20

Packaging details: 500units/carton

Single mode and multimode (flat), APC (catercorner 8° angled) available

High fiber density (maximum 24 fibers for multimode)

Fiber in single connector: 4, 8, 12 and 24

Insert/pull latching connector

High reflection loss with APC

Compliant with Telcordia GR-1435-CORE specification and RoSH Directive

Telecommunication networks

Test equipment

Optic fiber communication networks

Optical access network

Optical CATV

Optical LAN

Fiber diameter: SM 9/125µm, MM 62.5/125µm, 50/125µm

Insertion loss: SM PC ≤0.5dB, APC ≤0.4dB, MM PC ≤0.4dB

Return loss: SM PC ≥45 dB, APC ≥55dB, MM PC ≥25dB

Insert-pull test: 1000 times ≤0.5dB

Interchange: ≤0.5dB

Operating temperature: -40 to 80°C

Anti-tensile force: 15kgf

MPO/PC–MPO/PC-SM-12CORE–2M

Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4 and SMA

Ferrule end-face: PC, UPC and APC

Core type: single-mode (SM: 9/125µm), multimode (MM: 50/125µm or 62.5/125µm)

Cable length: 1, 2, 3 meter or customized

Cable type: PVC, LSZH, OM3, OFNR, OFNP and Plenum
