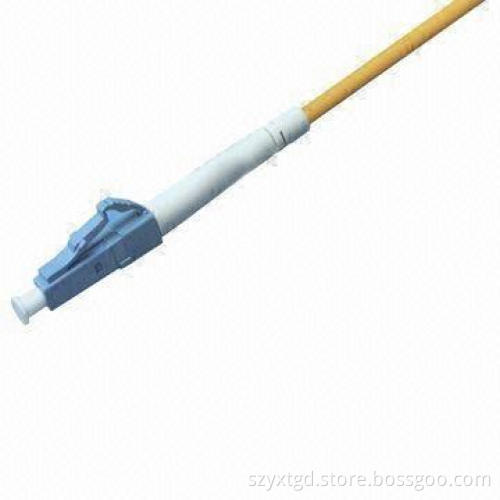

LC/SM/SX Fiber Optic Patch Cord with High RL and Low IL and 3.0mm Cable Diameter
  • LC/SM/SX Fiber Optic Patch Cord with High RL and Low IL and 3.0mm Cable Diameter
LC/SM/SX Fiber Optic Patch Cord with High RL and Low IL and 3.0mm Cable Diameter

LC/SM/SX Fiber Optic Patch Cord with High RL and Low IL and 3.0mm Cable Diameter

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Descriptions:
    • LC SM SX 3.0mm fiber optic patch cord
    • LC stands for Lucent connector
    • It is a small form-factor fiber optic connector, half the size of the ST
  • Features:
    • High return loss
    • Low insertion loss
    • Telcordia style boots
    • Compliant with TIA/IEA, IEC and RoHS Directive
  • Applications:
    • CATV, Metro and LAN
    • Active device termination
    • Telecommunication networks
    • Industrial, medical and military
  • Specifications:
    • PC (standard)
    • Insertion loss: ≤0.3dB, ≤0.2dB
    • Return loss: ≥50dB, ≥55dB
    • Operating temperature -40 to 75°C
    • Durability: ≤0.1dB typical change, 1,000 matings
    • Available wavelength: SM= 1,310 and 1,550Nm
  • Ordering information:
    • Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA and FA
    • Ferrule end-face: PC, UPC and APC
    • Core type: single-mode (SM: 9/125um), multi-mode (MM: 50/125um or 62.5/125um)
    • Cable quantity: DX (duplex)/SX (simplex)
    • Cable diameter: Ф3.0, Ф2.0 and Ф0.9mm
    • Cable length: 1, 2, 3m or customized
    • Cable type: PVC, LSZH, OM3, OFNR and OFNP
    • Colors: yellow, orange, green, red, blue and more
  • LC SM SX 3.0mm fiber optic patch cord
  • LC stands for Lucent connector
  • It is a small form-factor fiber optic connector, half the size of the ST
  • High return loss
  • Low insertion loss
  • Telcordia style boots
  • Compliant with TIA/IEA, IEC and RoHS Directive
  • CATV, Metro and LAN
  • Active device termination
  • Telecommunication networks
  • Industrial, medical and military
  • PC (standard)
  • Insertion loss: ≤0.3dB, ≤0.2dB
  • Return loss: ≥50dB, ≥55dB
  • Operating temperature -40 to 75°C
  • Durability: ≤0.1dB typical change, 1,000 matings
  • Available wavelength: SM= 1,310 and 1,550Nm
  • Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA and FA
  • Ferrule end-face: PC, UPC and APC
  • Core type: single-mode (SM: 9/125um), multi-mode (MM: 50/125um or 62.5/125um)
  • Cable quantity: DX (duplex)/SX (simplex)
  • Cable diameter: Ф3.0, Ф2.0 and Ф0.9mm
  • Cable length: 1, 2, 3m or customized
  • Cable type: PVC, LSZH, OM3, OFNR and OFNP
  • Colors: yellow, orange, green, red, blue and more
