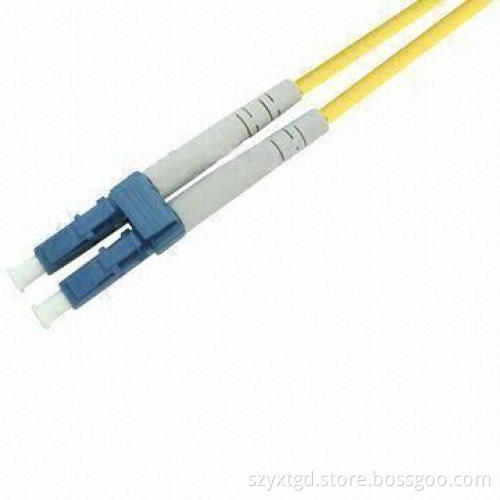

LC SM DX Fiber Optic Patch Cord, Cable Measures 3.0mm, with Low Insertion Loss
  • LC SM DX Fiber Optic Patch Cord, Cable Measures 3.0mm, with Low Insertion Loss
LC SM DX Fiber Optic Patch Cord, Cable Measures 3.0mm, with Low Insertion Loss

LC SM DX Fiber Optic Patch Cord, Cable Measures 3.0mm, with Low Insertion Loss

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Description:
    • LC stands for Lucent connector
    • Small form-factor fiber optic connector, half the size of the ST
  • Features:
    • High return loss
    • Low insertion loss
    • Telcordia style boots
    • Compliant with TIA/IEA, IEC and RoHS Directive
  • Applications:
    • CATV, Metro and LAN
    • Active device termination
    • Telecommunication networks
    • Industrial, medical and military
  • Specifications:
    • PC (standard)
    • Insertion loss: ≤0.3dB
    • Return loss): ≥50dB
    • Operating temperature -40 to 75°C
    • Durability: ≤0.1dB typical change, 1,000matings
    • Available wavelength: SM= 1,310 and 1,550Nm
  • Ordering information:
    • Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA and FA
    • Ferrule end-face: PC, UPC and APC
    • Core type: single-mode (SM: 9/125um), multi-mode (MM: 50/125um or 62.5/125um)
    • Cable quantity: DX (duplex)/SX (simplex)
    • Cable diameter: Ф3.0, Ф2.0 and Ф0.9mm
    • Cable length: 1, 2, 3m or customized
    • Cable type: PVC, LSZH, OM3, OFNR and OFNP
    • Colors: yellow, orange, green, red, blue and more
  • LC stands for Lucent connector
  • Small form-factor fiber optic connector, half the size of the ST
  • High return loss
  • Low insertion loss
  • Telcordia style boots
  • Compliant with TIA/IEA, IEC and RoHS Directive
  • CATV, Metro and LAN
  • Active device termination
  • Telecommunication networks
  • Industrial, medical and military
  • PC (standard)
  • Insertion loss: ≤0.3dB
  • Return loss): ≥50dB
  • Operating temperature -40 to 75°C
  • Durability: ≤0.1dB typical change, 1,000matings
  • Available wavelength: SM= 1,310 and 1,550Nm
  • Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA and FA
  • Ferrule end-face: PC, UPC and APC
  • Core type: single-mode (SM: 9/125um), multi-mode (MM: 50/125um or 62.5/125um)
  • Cable quantity: DX (duplex)/SX (simplex)
  • Cable diameter: Ф3.0, Ф2.0 and Ф0.9mm
  • Cable length: 1, 2, 3m or customized
  • Cable type: PVC, LSZH, OM3, OFNR and OFNP
  • Colors: yellow, orange, green, red, blue and more
