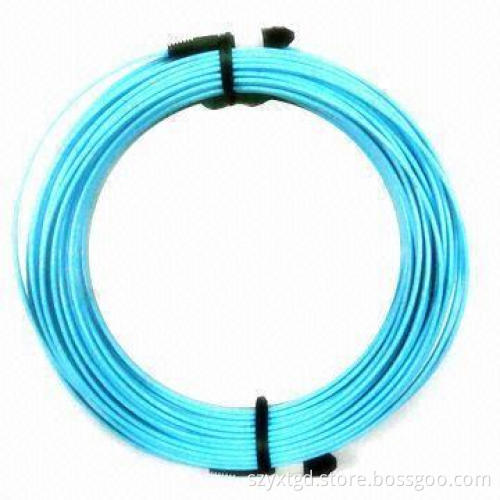

Fiber Optic Patch Cord with Low Insertion Loss and High Return Loss, MPO OM3
  • Fiber Optic Patch Cord with Low Insertion Loss and High Return Loss, MPO OM3
Fiber Optic Patch Cord with Low Insertion Loss and High Return Loss, MPO OM3

Fiber Optic Patch Cord with Low Insertion Loss and High Return Loss, MPO OM3

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • MTP/MPO fiber optic patch cord is used in ribbon type multifiber assemblies, unlike simplex or duplex
  • There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4, 8, 12 and 24 fibers
  • Features:
    • Single mode and multimode (flat), APC (catercorner 8° angled) available
    • High fiber density (maximum 24 fibers for multimode)
    • Fiber in single connector: 4, 8, 12 and 24
    • Insert/pull latching connector
    • High reflection loss with APC
    • Compliant with Telcordia GR-1435-CORE specification and RoSH Directive
  • Application:
    • Telecommunication networks
    • Test equipment
    • Optic fiber communication networks
    • Optical access network
    • Optical CATV
    • Optical LAN
  • Specifications:
    • Fiber diameter: SM 9/125µm, MM 62.5/125µm, 50/125µm
    • Insertion loss: SM PC ≤0.5dB, APC ≤0.4dB, MM PC ≤0.4dB
    • Return loss: SM PC ≥45 dB, APC ≥55dB, MM PC ≥25dB
    • Insert-pull test: 1000 times ≤0.5dB
    • Interchange: ≤0.5dB
    • Operating temperature: -40 to 80°C
    • Anti-tensile force: 15kgf
  • Ordering information:
    • MPO/PC–MPO/PC-SM-12CORE–2M
    • Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4 and SMA
    • Ferrule end-face: PC, UPC and APC
    • Core type: single-mode (SM: 9/125µm), multimode (MM: 50/125µm or 62.5/125µm)
    • Cable length: 1, 2, 3 meter or customized
    • Cable type: PVC, LSZH, OM3, OFNR, OFNP and Plenum
  • Minimum order quantity: 20
  • Packaging details: 500units/carton
  • Single mode and multimode (flat), APC (catercorner 8° angled) available
  • High fiber density (maximum 24 fibers for multimode)
  • Fiber in single connector: 4, 8, 12 and 24
  • Insert/pull latching connector
  • High reflection loss with APC
  • Compliant with Telcordia GR-1435-CORE specification and RoSH Directive
  • Telecommunication networks
  • Test equipment
  • Optic fiber communication networks
  • Optical access network
  • Optical CATV
  • Optical LAN
  • Fiber diameter: SM 9/125µm, MM 62.5/125µm, 50/125µm
  • Insertion loss: SM PC ≤0.5dB, APC ≤0.4dB, MM PC ≤0.4dB
  • Return loss: SM PC ≥45 dB, APC ≥55dB, MM PC ≥25dB
  • Insert-pull test: 1000 times ≤0.5dB
  • Interchange: ≤0.5dB
  • Operating temperature: -40 to 80°C
  • Anti-tensile force: 15kgf
  • MPO/PC–MPO/PC-SM-12CORE–2M
  • Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4 and SMA
  • Ferrule end-face: PC, UPC and APC
  • Core type: single-mode (SM: 9/125µm), multimode (MM: 50/125µm or 62.5/125µm)
  • Cable length: 1, 2, 3 meter or customized
  • Cable type: PVC, LSZH, OM3, OFNR, OFNP and Plenum
