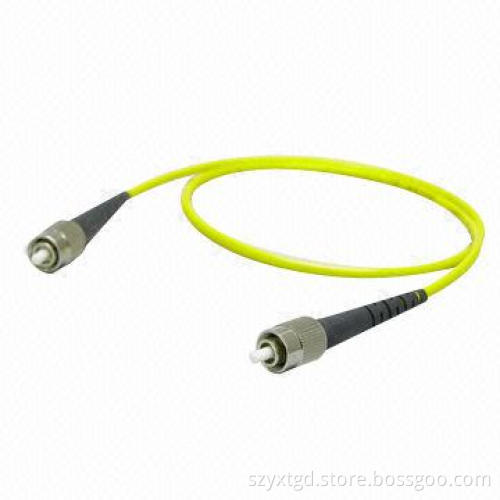

FC/PC Fiber-optic Patch Cord/Optical Fiber Jumper
  • FC/PC Fiber-optic Patch Cord/Optical Fiber Jumper
  • FC/PC Fiber-optic Patch Cord/Optical Fiber Jumper
FC/PC Fiber-optic Patch Cord/Optical Fiber Jumper
FC/PC Fiber-optic Patch Cord/Optical Fiber Jumper

FC/PC Fiber-optic Patch Cord/Optical Fiber Jumper

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Descriptions:
    • With FC fiber optic connectors, which is a screw type connection
    • FC stands for fixed connection
    • It is fixed by way of threaded barrel housing
    • FC connectors are generally constructed with a metal housing and are nickel plating
  • Features:
    • Low insertion and high return loss
    • High dense connection, easy for operation
    • High credibility and stability
    • Good in repeatability and ex-changeability
    • Customized lengths, cable colors and connectors are accepted
  • Applications:
    • Testing equipment
    • FTTX + LAN
    • Optical fiber CATV
    • Optical communication system
    • Telecommunication
  • Parameters:
    • SM:
      • Intersection loss:
        • PC: ≤0.3dB
        • UPC: ≤0.2dB
        • APC: ≤0.3dB
      • Return loss:
        • PC: ≥45dB
        • UPC: ≥50dB
        • APC: ≥30dB
      • MM:
        • Intersection loss:
          • PC: ≤0.2dB
        • Return loss:
          • PC: ≥30dB
      • Operating wavelength: 1,310 and 1,510Nm
      • Exchangeability: ≤0.2dB
      • Vibration: ≤0.2dB
      • Operating temperature: -40 to 75°C
      • Storage temperature: -40 to 85°C
      • Cable diameters: 3.0, 2.0 and 0.9mm
  • With FC fiber optic connectors, which is a screw type connection
  • FC stands for fixed connection
  • It is fixed by way of threaded barrel housing
  • FC connectors are generally constructed with a metal housing and are nickel plating
  • Low insertion and high return loss
  • High dense connection, easy for operation
  • High credibility and stability
  • Good in repeatability and ex-changeability
  • Customized lengths, cable colors and connectors are accepted
  • Testing equipment
  • FTTX + LAN
  • Optical fiber CATV
  • Optical communication system
  • Telecommunication
  • SM:
    • Intersection loss:
      • PC: ≤0.3dB
      • UPC: ≤0.2dB
      • APC: ≤0.3dB
    • Return loss:
      • PC: ≥45dB
      • UPC: ≥50dB
      • APC: ≥30dB
    • MM:
      • Intersection loss:
        • PC: ≤0.2dB
      • Return loss:
        • PC: ≥30dB
    • Operating wavelength: 1,310 and 1,510Nm
    • Exchangeability: ≤0.2dB
    • Vibration: ≤0.2dB
    • Operating temperature: -40 to 75°C
    • Storage temperature: -40 to 85°C
    • Cable diameters: 3.0, 2.0 and 0.9mm
  • Intersection loss:
    • PC: ≤0.3dB
    • UPC: ≤0.2dB
    • APC: ≤0.3dB
  • Return loss:
    • PC: ≥45dB
    • UPC: ≥50dB
    • APC: ≥30dB
  • MM:
    • Intersection loss:
      • PC: ≤0.2dB
    • Return loss:
      • PC: ≥30dB
  • Operating wavelength: 1,310 and 1,510Nm
  • Exchangeability: ≤0.2dB
  • Vibration: ≤0.2dB
  • Operating temperature: -40 to 75°C
  • Storage temperature: -40 to 85°C
  • Cable diameters: 3.0, 2.0 and 0.9mm
  • PC: ≤0.3dB
  • UPC: ≤0.2dB
  • APC: ≤0.3dB
  • PC: ≥45dB
  • UPC: ≥50dB
  • APC: ≥30dB
  • Intersection loss:
    • PC: ≤0.2dB
  • Return loss:
    • PC: ≥30dB
  • PC: ≤0.2dB
  • PC: ≥30dB
