Product Description

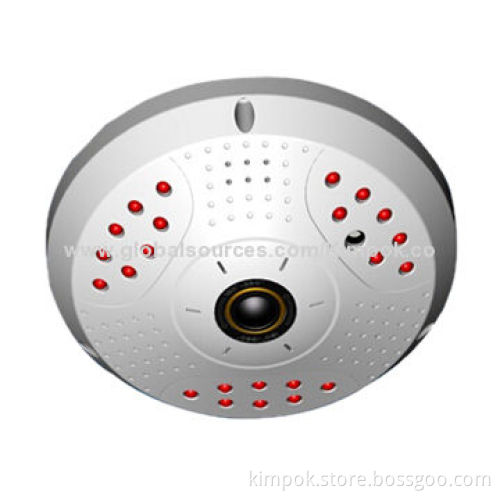

Replace multiple cameras using this Panorama viewing angle dome camera

1.56mm, 700TVL color picture quality

This ultra-wide angle outdoor vandal-resistant mini dome camera is great for any outdoor applications

Constructed with durable metal housing, this camera's compact design allows it to be placed virtually anywhere

Designed to be provided high-resolution picture with very wide viewing angle KP-366 is great addition to any video surveillance system, especially in applications subject to inclement weather conditions

Specifications:

Image pick-up device: 1/3" Sony EX-view HAD CCD
Number of pixels:
- PAL: (H) 762 x (V) 506p
- NTSC: (H) 772 x (V) 576p
TV system: NTSC/PAL
Scanning system: 2:1 interlaced
Sync system: internal
Scanning frequency: (H) 15.734 x (V) 59.94Hz
Horizontal resolution: 1.56mm, 700TVL
Signal-to-noise ratio (AGC-off): more than 48dB
Shutter speed: 1/50-1/1000s
Minimum sensitivity: 0.01lux (F2.0)
Gamma correction: 0.45 approximately
Gain control: automatic
Video output: BNC video 1.0Vp-p/75 ohms
Lens: standard f = 2.2mm
Viewing angle:
- Wall mount: 180°
- Ceiling mount: 360°
Power source: 12V DC, 300mA
Power consumption: 2.5W (maximum)
Operating temperature: -20 to 50°C
Dimensions: (D) 37 x (L) 90mm
IP rating: IP67
Weight: 160g

Accessory: mounting bracket

Image pick-up device: 1/3" Sony EX-view HAD CCD

Number of pixels:

PAL: (H) 762 x (V) 506p
NTSC: (H) 772 x (V) 576p

TV system: NTSC/PAL

Scanning system: 2:1 interlaced

Sync system: internal

Scanning frequency: (H) 15.734 x (V) 59.94Hz

Horizontal resolution: 1.56mm, 700TVL

Signal-to-noise ratio (AGC-off): more than 48dB

Shutter speed: 1/50-1/1000s

Minimum sensitivity: 0.01lux (F2.0)

Gamma correction: 0.45 approximately

Gain control: automatic

Video output: BNC video 1.0Vp-p/75 ohms

Lens: standard f = 2.2mm

Viewing angle:

Wall mount: 180°
Ceiling mount: 360°

Power source: 12V DC, 300mA

Power consumption: 2.5W (maximum)

Operating temperature: -20 to 50°C

Dimensions: (D) 37 x (L) 90mm

IP rating: IP67

Weight: 160g

PAL: (H) 762 x (V) 506p

NTSC: (H) 772 x (V) 576p

Wall mount: 180°

Ceiling mount: 360°
