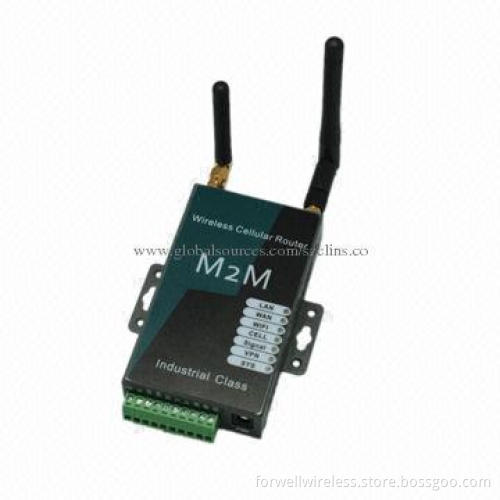

3G HSUPA Router with SIM Card Slot and WiFi GSP Serial

3G HSUPA Router with SIM Card Slot and WiFi GSP Serial

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Features:

Built-in industrial 3G HSUPA cellular module and SIM card slot, insert SIM/UIM card to work directly
Supports 3G WCDMA/UMTS/HSPA/HSUPA/HSDPA networks and back compatible to 2G EDGE/GPRS/GSM networks
Download: 7.2Mbps, Upload: 5.76Mbps
RJ45 WAN, cellular and Wi-Fi client three lines fail over feature
Auto-dial feature, keeps alive link and built-in watch dog
Easy to configure through friendly web interface management console, Telnet/SSH/CLI, supported and supports remote management
Wi-Fi (WLAN): 802.11b/g/n 150Mbps, secured connection through WEP 64/128-bit encryption, WPA-PSK/WPS2-PSK and WPS
WAN supports cell/static IP/DHCP/PPPoE (on demand, keeps alive, schedule and manual)
NAT/NAPT/port forwarding/DMZ, built-in firewall, packets filter and port redirection
DHCP/DNS proxy, DDNS, VRRP, NTP
SMS/voice call to control router to be online, offline, reboot and check status
LED indicator x 6 (VPN x 1, cell signal x 1, cell x 1, WAN x 1, LAN x 1 and WiFi x 1)
VPN (PPTP, L2TP, IPsec, GRE and tunnel)
SNMP V1, V2 and V3
VLAN
Supports firmware update locally or remotely (LAN, WiFi and OTA WAN)
Local and remote system log
WAN/LAN/Memory statistics
Local/remote profiles backup and retrieve
No installation required
PoE supported
Optional features:
- GPS
- Serial RS232/RS485
- Route: static route, optional for static route (BGP, BGPD, OSPF, zebra and rip)
- Management system
Ports:
- 1 x DC power input, 1 x terminal block for power input (5 to 40V default, 5 to 50V option)
- 1 x Ethernet RJ-45: 10/100Mbps
- 1 x WAN RJ-45: 10/100Mbps (WAN RJ45 can convert into LAN RJ45 to get 2 LAN RJ45)
- Serial RS232 or RS485 with DB9 connector (option)
- 4 x SMA antenna connector maximum (main cellular, aux cellular, WiFi and GPS)
- SIM card slot
Supports operating system: Windows 8, 7, Vista, Windows XP SP2, Windows 2000 SP4 or Mac OS X (v10.4/v10.3), Linux and other OS support internet browser
Weight and dimension:
    PCBA: 156 x 104 x 20mm
    With case: 168 x 104 x 25mm
    455g (not including the antenna)
    550g (including the antenna)
    850g (including all accessories, without package)
Color and case: Metal gray-black, OEM is available
Brand: E-Lins, Neutral White-brand, or OEM
Standard packing contents:
- H685 series wireless router
- CAT 5e Ethernet cable
- Power adapter
- Antenna
- Others depends on optional features

Built-in industrial 3G HSUPA cellular module and SIM card slot, insert SIM/UIM card to work directly

Supports 3G WCDMA/UMTS/HSPA/HSUPA/HSDPA networks and back compatible to 2G EDGE/GPRS/GSM networks

Download: 7.2Mbps, Upload: 5.76Mbps

RJ45 WAN, cellular and Wi-Fi client three lines fail over feature

Auto-dial feature, keeps alive link and built-in watch dog

Easy to configure through friendly web interface management console, Telnet/SSH/CLI, supported and supports remote management

Wi-Fi (WLAN): 802.11b/g/n 150Mbps, secured connection through WEP 64/128-bit encryption, WPA-PSK/WPS2-PSK and WPS

WAN supports cell/static IP/DHCP/PPPoE (on demand, keeps alive, schedule and manual)

NAT/NAPT/port forwarding/DMZ, built-in firewall, packets filter and port redirection

DHCP/DNS proxy, DDNS, VRRP, NTP

SMS/voice call to control router to be online, offline, reboot and check status

LED indicator x 6 (VPN x 1, cell signal x 1, cell x 1, WAN x 1, LAN x 1 and WiFi x 1)

VPN (PPTP, L2TP, IPsec, GRE and tunnel)

SNMP V1, V2 and V3

VLAN

Supports firmware update locally or remotely (LAN, WiFi and OTA WAN)

Local and remote system log

WAN/LAN/Memory statistics

Local/remote profiles backup and retrieve

No installation required

PoE supported

Optional features:

GPS
Serial RS232/RS485
Route: static route, optional for static route (BGP, BGPD, OSPF, zebra and rip)
Management system

Ports:

1 x DC power input, 1 x terminal block for power input (5 to 40V default, 5 to 50V option)
1 x Ethernet RJ-45: 10/100Mbps
1 x WAN RJ-45: 10/100Mbps (WAN RJ45 can convert into LAN RJ45 to get 2 LAN RJ45)
Serial RS232 or RS485 with DB9 connector (option)
4 x SMA antenna connector maximum (main cellular, aux cellular, WiFi and GPS)
SIM card slot

Supports operating system: Windows 8, 7, Vista, Windows XP SP2, Windows 2000 SP4 or Mac OS X (v10.4/v10.3), Linux and other OS support internet browser

Weight and dimension:
    PCBA: 156 x 104 x 20mm
    With case: 168 x 104 x 25mm
    455g (not including the antenna)
    550g (including the antenna)
    850g (including all accessories, without package)

Color and case: Metal gray-black, OEM is available

Brand: E-Lins, Neutral White-brand, or OEM

Standard packing contents:
