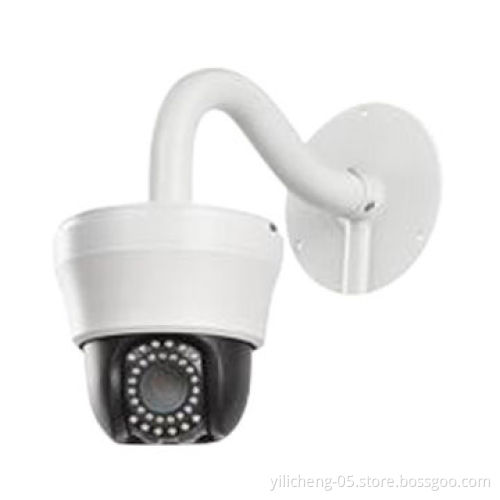

10x 700TVL IR mini speed dome cameras

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Key specifications/special features:

Image sensor: 1/2.8-inch Sony CMOS
Signal model: PAL/NTSC
Horizontal resolution: 700TVL
Effective pixels:
- P: (H)967*(V)494p
- N: (H)960*(V)582p
Minimum illumination (color to B/W):
- Color: 0.01lux
- B/W: 0.001lux
Signal-to-noise ratio: >60dB (enhanced)
Backlight compensation: on/off
White balance: auto
Electronic shutter: 1/50 to 1/12,000 seconds
Focus length: 5 to 55mm
Optical focus: 10x
Focus: auto/manual, takes high performance DSP to realize complete digit and ultra-high speed focus function
Presets: 256
Patrol track: 4 groups, each can record 200 actions
Cruise track: total 30 presets can join cruise, can set presets residence time
Other scans: supports horizontal scan, deuce area scan and scan random
Rotation range:
- Horizontal: 360° (unlimited rotation)
- Vertical: 90° (auto reversal)
Rotation speed:
- Horizontal: 0.01°/s (minimum)
- Vertical: 30°/s (maximum)
Communications: RS485, PELCO-D and PELCO-P
OSD: supported
Temperature control: built-in
Power supply: 12V DC/2A
Shell material: aluminum
Working environment: -20 to 50°C (selected temperature control accessories), <95% RH
Warranty: 2 years

Image sensor: 1/2.8-inch Sony CMOS

Signal model: PAL/NTSC

Horizontal resolution: 700TVL

Effective pixels:

P: (H)967*(V)494p
N: (H)960*(V)582p

Minimum illumination (color to B/W):

Color: 0.01lux
B/W: 0.001lux

Signal-to-noise ratio: >60dB (enhanced)

Backlight compensation: on/off

White balance: auto

Electronic shutter: 1/50 to 1/12,000 seconds

Focus length: 5 to 55mm

Optical focus: 10x

Focus: auto/manual, takes high performance DSP to realize complete digit and ultra-high speed focus function

Presets: 256

Patrol track: 4 groups, each can record 200 actions

Cruise track: total 30 presets can join cruise, can set presets residence time

Other scans: supports horizontal scan, deuce area scan and scan random

Rotation range:

Horizontal: 360° (unlimited rotation)
Vertical: 90° (auto reversal)

Rotation speed:

Horizontal: 0.01°/s (minimum)
Vertical: 30°/s (maximum)

Communications: RS485, PELCO-D and PELCO-P

OSD: supported

Temperature control: built-in

Power supply: 12V DC/2A

Shell material: aluminum

Working environment: -20 to 50°C (selected temperature control accessories), <95% RH

Warranty: 2 years

P: (H)967*(V)494p

N: (H)960*(V)582p

Color: 0.01lux

B/W: 0.001lux

Horizontal: 360° (unlimited rotation)

Vertical: 90° (auto reversal)

Horizontal: 0.01°/s (minimum)

Vertical: 30°/s (maximum)
