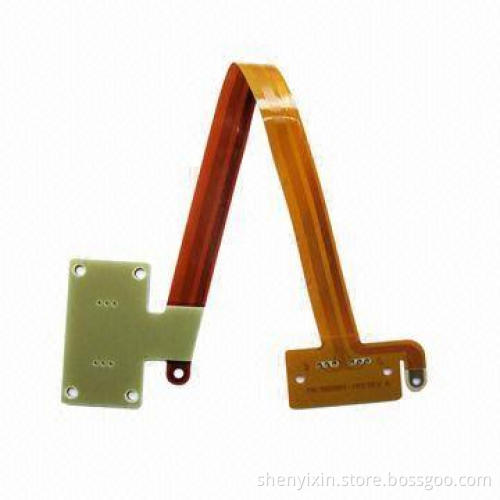

Single-layered Flexible Circuit Board, 0.2mm Minimum Hole Size, UL and TS16949 Marks

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, MoneyGram or PayPal

Product Description

Features:

Single-sided FPC

Base material: FR9120R single-sided Cu

Dimensions: 0.32000 x 0.25000m

Cover layer: 1mil ADH/1mil PI

Supplement: 0.125mm hot-set PI stiffener and 1.6mm FR4stiffener

Surface treatments:

ENIG Au: 0.05 to 0.12um

Ni: 3 to 6um

Hole tolerance: ±0.076mm

Process capability:

Base film thickness: polyamide 12.5/25/35/50um and polyester12.5/25/35/50um

Copper thickness: 12/17.5/35/50/70/105um

Minimum line width/line space: 0.075/0.075mm

Minimum hole size: 0.2mm

Tolerance: outline ±0.05mm/cover layer±0.2mm

Peel strength: polyamide above 1.0kgf/cm and polyester above0.8kgf/cm

Solder resistance:

Polyamide 260°C and 10 seconds

Polyester 204°C and 5 seconds

Certificates: UL and TS16949

Product meets RoHS and WEEE lead-free requirements
