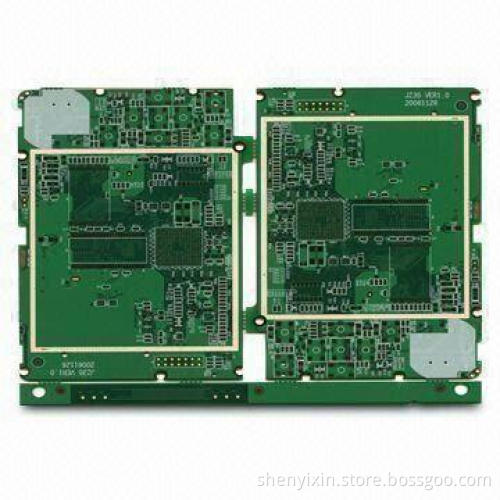

PCB Laminates, Made of FR4 Basic, 0.5 to 7.0oz (Minimum) Copper Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, MoneyGram or PayPal

Product Description

FPC production capability

Layers: 1-6

Finished board thickness:

Available laminates materials: PI.PET, FR4-PI

Finished board thickness tolerance: ±0.01mm

Finished hole diameter: 0.1mm (minimum)

Finished hole diameter: 0.6mm (maximum)

NPTH hole diameter tolerance: ±0.025mm

PTH hole diameter tolerance: ±0.050mm

Copper foil thickness: 12, 18, 35, 70um

Circuit width/spacing: e0.065 (1/2), e0.05mm (1/3oz)(minimum)

Surface finished type OSP gold plating, immersion gold, tinplating (lead-free) and more

Gold flash Ni/Au thickness:

Immersion tin thickness: 0.7-1.2um

Tin plating thickness: 3-15um

Drill hole position tolerance: ±0.05mm

Punching dimensions tolerance: ±0.05mm

Certificates: RoHS, UL and more

Minimum: 10 x 45mm

Maximum: 250 x 1,200mm

Ni: 2.54-9um

Au: 0.025-0.5um
