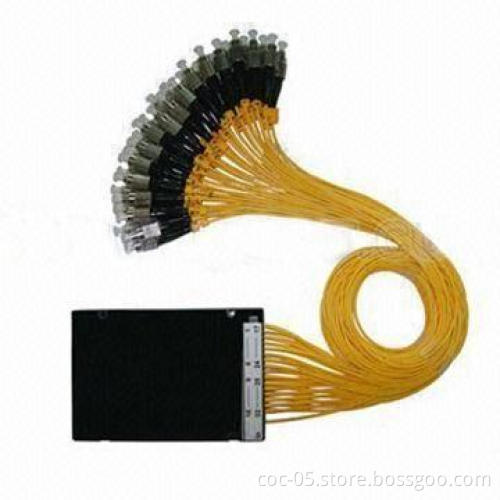

1 x 64 PLC/Fiber/Fused Splitter, Lower Insertion Loss

Get Latest Price

Payment Type:: T/T, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or Western Union

Product Description

Features:

Lower polarization loss
Lower insertion loss
Higher directivity
Higher stability and reliability
Smaller size
Adopts technology of integrated optics with splattering chip and lithography to make light wave circuit on Si based silica block or glass block to realize optical multiple distribution
Ideal FTTH access device
Broad working bandwidth (working band range: 1260 to 1650nm and loss insensitive to wavelength)
Stable temperature (working temperature range: -40 to 85°C)
Very few failure volume, vibration- and impact-resistant without change of ratio
Small package volume
Reliable performance
With even splitting ability
Easy for management and suitable for various occasions

Specifications:

Configuration: 1 x 2, 1 x 4, 1 x 8, 1 x 16, 1 x 32 and 1 x 64
Wavelength: 1250 to 1650nm
Insertion loss (S/P): 3.6/3.4, 7.7/7.5, 11.5/11.0, 14.5/14.0 and 18.2/17.5dB (maximum)
Attenuation: 0.5, 0.8, 1.0, 1.4 and 1.9dB (maximum)
Return attenuation (S/P):
- APC: 50/55dB (minimum)
- UPC: 45/50dB (minimum)
PDL: 0.2 or 0.3dB (maximum)
Directivity: 55dB (minimum)
Length of pigtail: customized
Fiber type: customized
Operating temperature: -20 to -65°C
Storage temperature: -40 to -85°C

Applications:

Telecommunication networks
Fiber optic CATV
Testing equipment
FTTX system
Passive optical networks (PON)
Local area networks (LAN)
