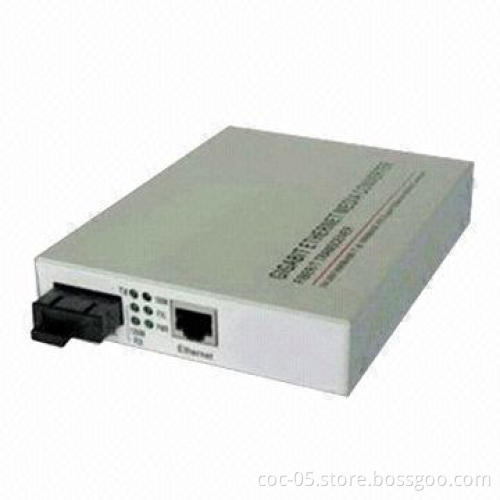

10/100/1000M Fiber Media Converter, 100m to 120km Transmission Distance

10/100/1000M Fiber Media Converter, 100m to 120km Transmission Distance

Get Latest Price

Payment Type:: T/T, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or Western Union

Product Description

Description:

Performance optical transceivers that use SFP/1X9 module
With advanced design and technology, this series of product featured with the advanced store-and-forward technology and the lightning-protection circuit
Series of product supports POF and SM/MM optical fiber, bi-directional single fiber
Transmitting distance can be 100m for POF and up to 120km for SM fiber
The series of fiber fast Ethernet media converter can convert optical electric Ethernet signals between 10/100M UTP and 100M optical fiber, in order to meet the requirement for long-distance and high speed Ethernet network
The distance can be up to 120km without relay data transmission

Specification:

Voltage: 5V DC
Dimension (W x D x H): 26.1 x 70.6 x 94mm
Operating temperature: -10 to 50°C
Storage temperature: -40 to 70°C
Relative humidity: 5 to 90% (non-condensing)

Standards:

IEEE802.3 10/100Base-T Ethernet
IEEE802.3u 100Base-FX Fast Ethernet
IEEE802.3x flow control
IEEE802.1q VLAN
IEEE802.1p QoS and IEEE802.1d spanning tree

Features:

Built-in high efficiency transmitting core to realize flow control and reduce broadcast packets
Supports full-duplex/half-duplex mode self-negotiation
Supports UTP automatic switchover parallel/cross line, easy for system installation and debugging
Supports link failure alert (LFA)
Supports delay transmission
Supports low delay transmission
Supports 1,600byte ultra-long data packet transmission
Supports VLAN ultra-long data packet transmission
Supports QoS, make sure the VOIP data packet transmission
Supports STP spanning-tree constituting redundant network

Applications: it can be used to the applications in telecommunication, television broadcast, broadband network and more

Performance optical transceivers that use SFP/1X9 module

With advanced design and technology, this series of product featured with the advanced store-and-forward technology and the lightning-protection circuit

Series of product supports POF and SM/MM optical fiber, bi-directional single fiber

Transmitting distance can be 100m for POF and up to 120km for SM fiber

The series of fiber fast Ethernet media converter can convert optical electric Ethernet signals between 10/100M UTP and 100M optical fiber, in order to meet the requirement for long-distance and high speed Ethernet network

The distance can be up to 120km without relay data transmission

Voltage: 5V DC

Dimension (W x D x H): 26.1 x 70.6 x 94mm

Operating temperature: -10 to 50°C

Storage temperature: -40 to 70°C

Relative humidity: 5 to 90% (non-condensing)

IEEE802.3 10/100Base-T Ethernet

IEEE802.3u 100Base-FX Fast Ethernet

IEEE802.3x flow control

IEEE802.1q VLAN

IEEE802.1p QoS and IEEE802.1d spanning tree

Built-in high efficiency transmitting core to realize flow control and reduce broadcast packets
