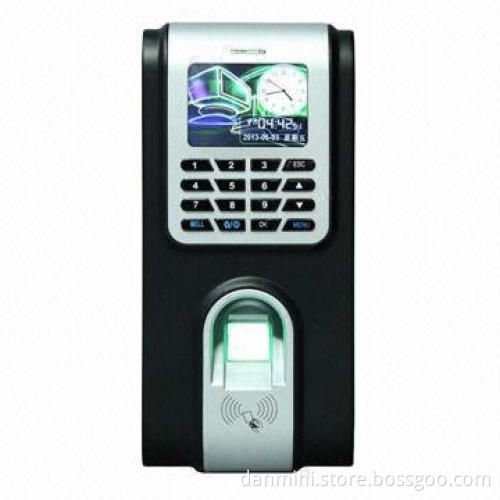

Fingerprint Access Control Keypad with 12V DC

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Product features:

The intelligent autonomous fingerprint algorithm, a significant improvement in fingerprint recognition ability of environment, climate change and the finger injury, peeling, to achieve full fingerprint state recognition time is less than 0.8 seconds
Multifunctional authentication mode, you can set the fingerprint + password + card and other combinations of different recognition
Can be completely offline operation, use U disk can complete computer are set on the device, without the need for the connection machine
The appearance of the use of acrylic panels, noble and elegant, the shell is made of UV material handling smooth texture, the back cover with rubber paint process, feel mellow, no rigid sense
External Wiegand 26/34 read head, also can output Wiegand26 signal using a read head

Technical parameters:

Model: F8
Product color: black
Screen display: 2.4-inch TFT high-definition color display
Fingerprint collecting: high hardness optical fingerprint collecting instrument
Verification mode: fingerprint, password, cards and other different recognition combination
Language: English
FRR: ≤1%
FAR: ≤0.0001%
Reaction time: ≤0.8 seconds
Compared to the way: 1:N and 1:1
Authentication modes: fingerprint password, IC card and ID card
Fingerprint storage capacity: 1000
Maximum number of records to verify: Article 100000
Communication modes: USB, TCP/IP, RS485
U disk to download/upload function: supported
Intelligent learning: supported
Record query: supported
Access control functions: time, door control, support anti-submarine function
Wiegand input: supports WG26/34
Double fingerprint authentication: supported
Validity verification function: supported
Voice prompt: high clear human speech
Working humidity: 20 to 80%
Working temperature: -10 to 60°C
Working voltage: 12V DC

The intelligent autonomous fingerprint algorithm, a significant improvement in fingerprint recognition ability of environment, climate change and the finger injury, peeling, to achieve full fingerprint state recognition time is less than 0.8 seconds

Multifunctional authentication mode, you can set the fingerprint + password + card and other combinations of different recognition

Can be completely offline operation, use U disk can complete computer are set on the device, without the need for the connection machine

The appearance of the use of acrylic panels, noble and elegant, the shell is made of UV material handling smooth texture, the back cover with rubber paint process, feel mellow, no rigid sense

External Wiegand 26/34 read head, also can output Wiegand26 signal using a read head

Model: F8

Product color: black

Screen display: 2.4-inch TFT high-definition color display

Fingerprint collecting: high hardness optical fingerprint collecting instrument

Verification mode: fingerprint, password, cards and other different recognition combination

Language: English

FRR: ≤1%

FAR: ≤0.0001%

Reaction time: ≤0.8 seconds

Compared to the way: 1:N and 1:1

Authentication modes: fingerprint password, IC card and ID card
