Basic Info

Payment Type:	T/T in Advance

Product Description

Product features:

2.8-inch TFT high-definition color display, more clear, intuitive
Can set a password + induction card combination identification
Can be completely offline operation, use U disk can complete computer are set on the device, without the need for the connection machine
Appearance of the use of acrylic panels, noble and elegant, the shell is made of UV material handling smooth texture, the back cover with rubber paint process, feel mellow, no rigid sense
New touch key, can reflect more high-tech charm

Technical parameters

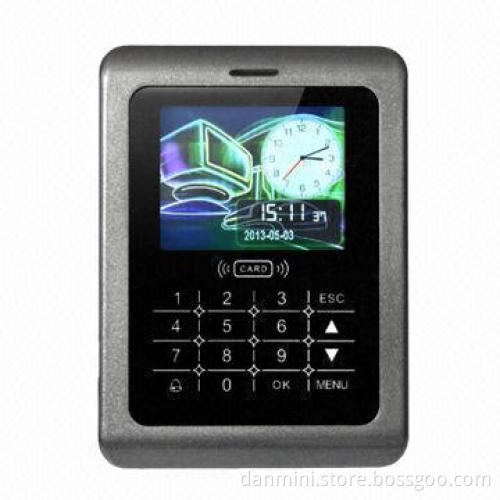

Model: F-20
Product color: black, gray iron, silver
Screen display: 2.8-inch TFT high-definition color display
Verification mode: password cards and other different recognition combination
Language: Chinese, English
Reaction time: ≤0.8 seconds
Authentication mode: Password, IC card and ID card
ID card storage capacity: 20000
Maximum number of records to verify: 300000
Communication mode: USB, TCP/IP, RS485
U disk to download/upload function: supported
Record query: supported
Access control function: time, door control, support anti-submarine function
Wiegand input: support WG26/34
Validity verification function: supported
Voice prompt: high fidelity voice
Working voltage: DC 12V

2.8-inch TFT high-definition color display, more clear, intuitive

Can set a password + induction card combination identification

Can be completely offline operation, use U disk can complete computer are set on the device, without the need for the connection machine

Appearance of the use of acrylic panels, noble and elegant, the shell is made of UV material handling smooth texture, the back cover with rubber paint process, feel mellow, no rigid sense

New touch key, can reflect more high-tech charm

Model: F-20

Product color: black, gray iron, silver

Screen display: 2.8-inch TFT high-definition color display

Verification mode: password cards and other different recognition combination

Language: Chinese, English

Reaction time: ≤0.8 seconds

Authentication mode: Password, IC card and ID card

ID card storage capacity: 20000

Maximum number of records to verify: 300000

Communication mode: USB, TCP/IP, RS485

U disk to download/upload function: supported
