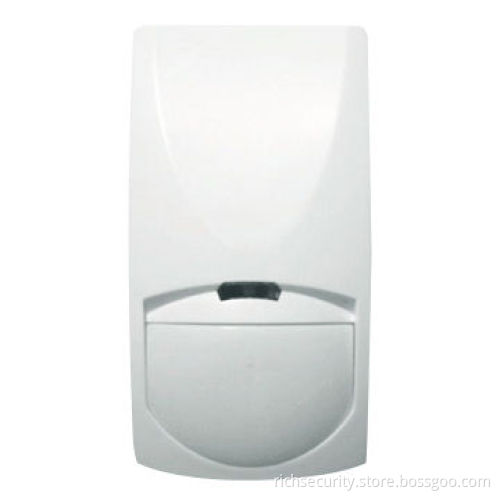

Digital PIR and MW Double Tech Motion Detector

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

New generation of professional movement spread spectrum analyzing PIR and MW detectors with PET immune function

Combination of PIR and MW detectors, provides protection from intruders by Pyro sensor element and MW (based on Doppler concept)

Using micro controller for PIR and MW signal analyzing, with special ASIC technology for PIR pulse processing, assures false alarm free operation

Quad (four element) Pyro sensor and hard lens for outstanding detection performance and elimination of false alarms

Microwave detection based on Doppler concept

Unique microwave motion sensor module with micro-strip patch antenna

VLSI based electronics with movement speed spectrum analysis

Height installation calibration-free

User-friendly installation with or without swivel bracket

2-way microwave sensitivity adjustment

2-way PIR sensitivity adjustment

Bi-directional temperature compensation

Environmental immunity

Provides pet immunity up to 25kg

Pet active bellow 1m

Technical specifications:

Detection method quad element PIR and
Microwave pulse: Doppler
Power input: 8.2 to 16V DC
Current draw active: 25.5mA
Standby current: 16.5mA
Temperature compensation: supported
Alarm period: 2, ±1 second
Alarm output: NC 28V DC, 0.1A with 10Ω series protection resistors
Tamper switch: NC 28V DC, 0.1A with 10Ω series protection resistor, open when cover is removed
Warm up period: 1 minute
LED indicator: yellow LED is blinking during warm up period and self testing
Red LED: on during alarm
Green LED: PIR channel
Yellow LED: MW channel
Dimensions: 123 x 62 x 38mm
Weight: 120g
