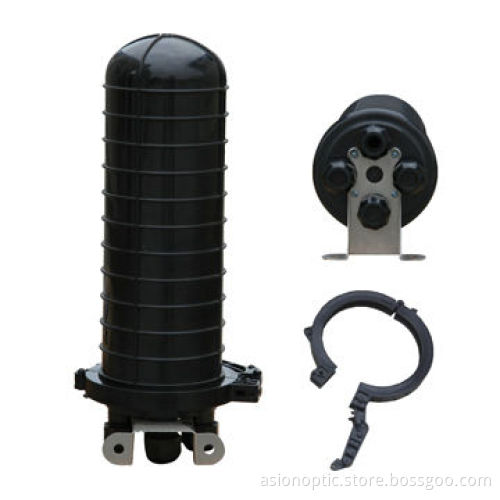

Optical Splice Closure, Suitable for Aerial, Duct and Underground Application
  • Optical Splice Closure, Suitable for Aerial, Duct and Underground Application
Optical Splice Closure, Suitable for Aerial, Duct and Underground Application

Optical Splice Closure, Suitable for Aerial, Duct and Underground Application

Get Latest Price
Payment Type:
T/T, L/C, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union or PayPal
Product Description
Product Description
  • Suitable for aerial, duct and underground application
  • Valve option for pressure testing
  • Engineering plastic body filled with silicon rubber and sealedwith hoop, heat shrinkable tube and mechanical sealing for yourchoice
  • Quick open clamped dome-base design
  • Reliable gasket sealing,reopened repeatedly without changingsealing material
  • Suitable for ribbon and non-ribbon fibers
  • Sizes: $190 x 410, $190 x 435, $210 x 540mm
  • Weight: 2.34kg
  • Cable diameter: $7, $22
  • Cable ports: 2 in, 2 out, 3 in, 3 out
  • Splice tray cores: 24 (single), 12/24 (single) 24, (single)/72(ribbon)
  • Number of splice tray: 4
  • Maximum capacity: 96 (single)/288 (ribbon
  • Cable entry: sealing screw, mechanical heat-shrinkable
  • Sealing structure: silicon gum
  • Packaging information:
    • Type: ASCD3-JF
      • Net size: 420 x 170 x 205mm
      • Net weight: 2.4kg
      • Outer carton size: 550 x 450 x 480mm
      • Outer carton weight: 15.5kg
      • Number per carton: 6pcs
    • Type: ASCD3-RS
      • Net size: 445 x 170 x 205mm
      • Net weight: 2.3kg
      • Outer carton size: 550 x 450 x 480mm
      • Outer carton weight: 15.0kg
      • Number per carton: 6pcs
    • Type: ASCD5-RS
      • Net size: 550 x 220 x 190mm
      • Net weight: 3.5kg
      • Outer carton size: 465 x 405 x 575mm
      • Outer carton weight: 15.6kg
      • Number per carton: 4pcs
  • Type: ASCD3-JF
    • Net size: 420 x 170 x 205mm
    • Net weight: 2.4kg
    • Outer carton size: 550 x 450 x 480mm
    • Outer carton weight: 15.5kg
    • Number per carton: 6pcs
  • Type: ASCD3-RS
    • Net size: 445 x 170 x 205mm
    • Net weight: 2.3kg
    • Outer carton size: 550 x 450 x 480mm
    • Outer carton weight: 15.0kg
    • Number per carton: 6pcs
  • Type: ASCD5-RS
    • Net size: 550 x 220 x 190mm
    • Net weight: 3.5kg
    • Outer carton size: 465 x 405 x 575mm
    • Outer carton weight: 15.6kg
    • Number per carton: 4pcs
  • Net size: 420 x 170 x 205mm
  • Net weight: 2.4kg
  • Outer carton size: 550 x 450 x 480mm
  • Outer carton weight: 15.5kg
  • Number per carton: 6pcs
  • Net size: 445 x 170 x 205mm
  • Net weight: 2.3kg
  • Outer carton size: 550 x 450 x 480mm
  • Outer carton weight: 15.0kg
  • Number per carton: 6pcs
  • Net size: 550 x 220 x 190mm
  • Net weight: 3.5kg
  • Outer carton size: 465 x 405 x 575mm
  • Outer carton weight: 15.6kg
  • Number per carton: 4pcs
