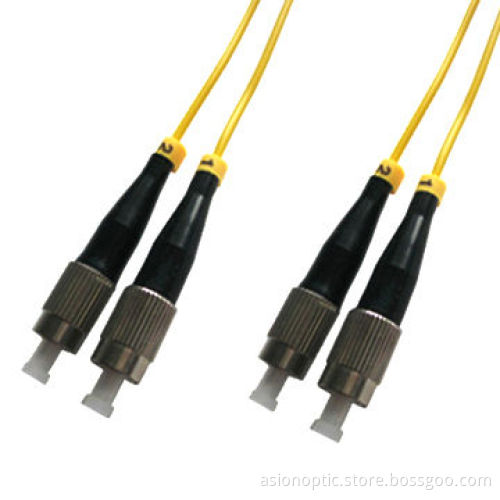

FC to FC fiber-optic patch cords, single-mode duplex with ST/LC/SC/MTRJ connector
  • FC to FC fiber-optic patch cords, single-mode duplex with ST/LC/SC/MTRJ connector
FC to FC fiber-optic patch cords, single-mode duplex with ST/LC/SC/MTRJ connector

FC to FC fiber-optic patch cords, single-mode duplex with ST/LC/SC/MTRJ connector

Get Latest Price
Payment Type:
T/T, L/C, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union or PayPal
Product Description
Product Description
  • Description:
    • Used in patch cords are designed to FC standards with zirconiaferrules and non-optical disconnect performance
    • They are fully compatible with existing FC hardware
    • In addition to basic testing, some mechanical and environmenttests per IEC or Telcordia standards are also performedperiodically to guarantee
    • For standard patch cords, sampling check is performed onferrule geometry to ensure high percentage of polished connectorsmeeting GR-326 requirements
    • For premium grade, ferrule geometry is tested on all patchcords to meet theseGR-326 requirements
    • Other than standard single- and multi-mode fibers, G655, OM2and OM3 fibers are also available upon request
    • Flame retardant grade cable sheathing options are offered
    • Riser rated cable will be provided as standard
    • LSZH and Plenum can be provided upon request
  • Features:
    • Push-pull latching mechanism
    • Non-optical disconnect performance
    • Zirconia ferrules
    • RoHS Directive-compliant
    • Riser, plenum and LSZH cables are available
  • Applications:
    • Telecommunication
    • Computer networks
    • CATV networks
    • Active device termination
    • Instrumentation
  • Specifications:
    • Single- and multi-mode:
      • Fiber diameters: 9/125, 62.5/125 and 50/125μm
      • Insertion loss:
        PC: <0.3dB
        APC: <0.2dB
        PC: <0.3dB
      • Return loss:
        PC: >45dB
        APC: >60dB
        PC: >25dB
      • Insertpull test (1000 times): <0.3dB
      • Interchange: <0.2dB
      • Operation temperature: -40 to +80°C
      • Anti-tensile force: 15kgf
  • Used in patch cords are designed to FC standards with zirconiaferrules and non-optical disconnect performance
  • They are fully compatible with existing FC hardware
  • In addition to basic testing, some mechanical and environmenttests per IEC or Telcordia standards are also performedperiodically to guarantee
  • For standard patch cords, sampling check is performed onferrule geometry to ensure high percentage of polished connectorsmeeting GR-326 requirements
  • For premium grade, ferrule geometry is tested on all patchcords to meet theseGR-326 requirements
  • Other than standard single- and multi-mode fibers, G655, OM2and OM3 fibers are also available upon request
  • Flame retardant grade cable sheathing options are offered
  • Riser rated cable will be provided as standard
  • LSZH and Plenum can be provided upon request
  • Push-pull latching mechanism
  • Non-optical disconnect performance
  • Zirconia ferrules
  • RoHS Directive-compliant
  • Riser, plenum and LSZH cables are available
  • Telecommunication
  • Computer networks
  • CATV networks
  • Active device termination
  • Instrumentation
  • Single- and multi-mode:
    • Fiber diameters: 9/125, 62.5/125 and 50/125μm
    • Insertion loss:
      PC: <0.3dB
      APC: <0.2dB
      PC: <0.3dB
    • Return loss:
      PC: >45dB
      APC: >60dB
      PC: >25dB
    • Insertpull test (1000 times): <0.3dB
    • Interchange: <0.2dB
    • Operation temperature: -40 to +80°C
    • Anti-tensile force: 15kgf
  • Fiber diameters: 9/125, 62.5/125 and 50/125μm
  • Insertion loss:
    PC: <0.3dB
    APC: <0.2dB
    PC: <0.3dB
  • Return loss:
    PC: >45dB
    APC: >60dB
    PC: >25dB
  • Insertpull test (1000 times): <0.3dB
  • Interchange: <0.2dB
  • Operation temperature: -40 to +80°C
  • Anti-tensile force: 15kgf
