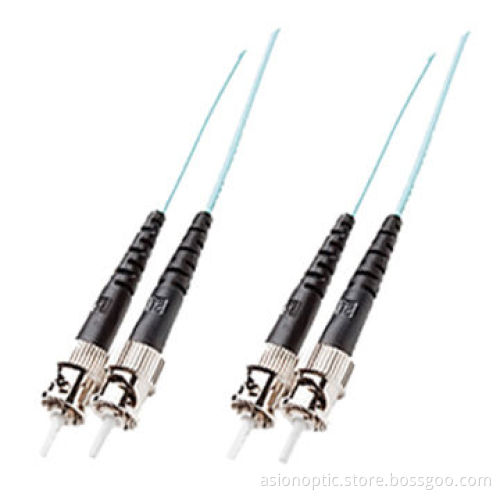

Fiber Patch Cords, Multi-mode Duplex ST-ST OM3, 10GB

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Descriptions:

Designed to SC standards and are fully compatible with existingSC hardware
Two simplex connectors can be configured into a duplex formatby adding a duplex clip
In addition to basic testing, some mechanical and environmentaltests per IEC or Telcordia are also performed periodically toguarantee the good-quality
For standard patch cords, sampling check is performed onferrule geometry to ensure high percentage of polished connectorsmeeting GR-326 requirements
For premium grade, ferrule geometry is tested on all patchcords to meet these GR-326 requirements
Other than standard single- and multi-mode fibers, G655, OM2,and OM3 fibers are also available upon request
Flame retardant grade cable sheathing options are offered
Riser rated cable will be provided as standard
LSZH and Plenum can be provided upon request

Features:

Push-pull latching mechanism
Non-optical disconnect performance
Good-quality zirconia ferrules
Materials meet RoHS Directive-compliant requirements
Riser, Plenum, and LSZH cables available

Applications:

Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation

Specification:

Single-/multi-mode
Fiber diameter: 9/125, 62.5/125 and 50/125um
Insertion loss: PC≤0.3, APC≤0.2, PC≤0.3dB
Return loss: PC≥45, APC≥60, PC≥25dB
Insertpull test (1,000 times): ≤0.3dB
Interchange: ≤0.2dB
Operation temperature: -40 to +80°C
Anti-tensile force 15kgf

Designed to SC standards and are fully compatible with existingSC hardware

Two simplex connectors can be configured into a duplex formatby adding a duplex clip

In addition to basic testing, some mechanical and environmentaltests per IEC or Telcordia are also performed periodically toguarantee the good-quality

For standard patch cords, sampling check is performed onferrule geometry to ensure high percentage of polished connectorsmeeting GR-326 requirements

For premium grade, ferrule geometry is tested on all patchcords to meet these GR-326 requirements

Other than standard single- and multi-mode fibers, G655, OM2,and OM3 fibers are also available upon request

Flame retardant grade cable sheathing options are offered

Riser rated cable will be provided as standard

LSZH and Plenum can be provided upon request

Push-pull latching mechanism

Non-optical disconnect performance

Good-quality zirconia ferrules

Materials meet RoHS Directive-compliant requirements

Riser, Plenum, and LSZH cables available

Telecommunication
