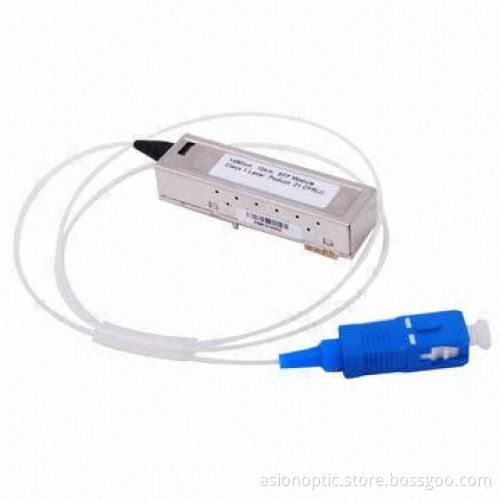

622MB/Second Bi-directional Optical Transceiver, 2 x 5 SFF, SC, + 3.3V

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Features:

2 x 5 SFF, SC, + 3.3V

1490nm/1550nm, DFB-LD

Small form factor 2 x 5 pin package

Single SC connector bi-directional operating

Operating wavelength: 1,490/1,550nm

Power supply: single + 3.3V

LVPECL data interface

Compliant with telcordia (bell core) GR-468-core

Isolation >30dB, cross talk -45dB

Compliant with RoHS Directives

Description:

SFF bi-directional transceiver is a high-performance, costeffective module for bi-directional serial optical datacommunication applications, all versions are compliant withSONET/SDH recommendations

This module is designed for single mode single fiber, operatesat the normal wavelength of 1,490/1,550nm

The transmitter section incorporates DFB and driver IC withtemperature compensation and automatic power control circuit

The receiver section incorporates an efficient InGaAs/InP PINphotodiode and transimpedance with AGC for wide dynamic range

An integrated WDM couplet separates 1,490 and 1,550nmlights

622MB/second bi-directional optical transceiver, thetransceiver has excellent immunity and reliability
