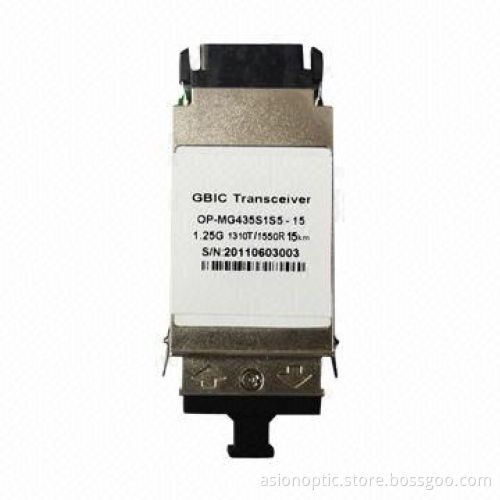

Bi-di GBIC Optical Transceiver with Data Rate of 1,310/1,550nm, 5V Single-mode
  • Bi-di GBIC Optical Transceiver with Data Rate of 1,310/1,550nm, 5V Single-mode
Bi-di GBIC Optical Transceiver with Data Rate of 1,310/1,550nm, 5V Single-mode

Bi-di GBIC Optical Transceiver with Data Rate of 1,310/1,550nm, 5V Single-mode

Get Latest Price
Payment Type:
T/T, L/C, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union or PayPal
Product Description
Product Description
  • 1.25Gbps Bi-di GBIC optical transceiver (OP-MG435S1S5-15 andOP-MG453S1S5-15)
  • 1.25Gb/s, hot-pluggable, duplex SC, +5V single-mode WDM,1,310/1,550nm
  • Features:
  • SM bi-directional Gigabit interface converters (GBIC)
  • Compliant with Gigabit interface converter specificationrev.5.5 (1)
  • Compliant with specifications of IEEE-802.3
  • SC connector, hot-pluggable
  • Data rate: 1.25Gbps, NRZ
  • Compliant with ANSI specifications for fiber channelapplications at 1.06Gbps
  • Eye safety, designed to meet laser class 1, compliant withIEC60825-1
  • TTL RX-LOS
  • Single +5V power supply
  • Applications:
  • Gigabit Ethernet (1000Base-SX) links at 1.25Gbps
  • Fiber channel links at 1.06Gbps
  • High-speed I/O for file servers
  • Switch to switch interface
  • SONET/SDH equipment interconnect
  • Description:
  • Optostars OP-MG435S1S5-15 and OP-MG453S1S5-15 transceiver is ahigh-performance and cost effective module for serial optical datacommunication applications
  • The interface converters meet the GBIC standard rev.5.5
  • This module is designed for 1 fiber single-mode and operates atthe wavelength of 1,310/1,550nm WDM
  • The transmitter section incorporates an advanced FP forsingle-mode with temperature compensation and automatic powercontrol circuit (APC)
  • The receiver section incorporates an efficiency InGaAs/InP PINphotodiode with AGC for wide dynamic range
  • The family is a BI-DI SC transceiver designed for GigabitEthernet use and provides an IEEE-802.3 compliant link at 1.25Gbpsapplications
  • The modules are hot-pluggable, the characterization isperformed in accordance with Bellcore specificationTA-NWT-000983
  • All of them are housed in a stainless packing and combinationproduces component of high-reliability
