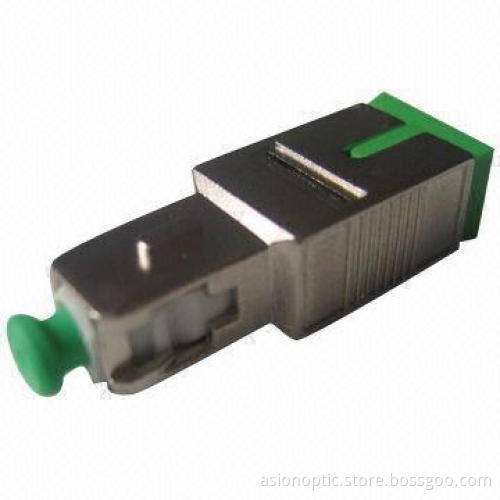

1 to 25dB SC Fiber-optic Female to Male Fixed Type Attenuator, 1310 to 1550nm Wavelength
  • 1 to 25dB SC Fiber-optic Female to Male Fixed Type Attenuator, 1310 to 1550nm Wavelength
1 to 25dB SC Fiber-optic Female to Male Fixed Type Attenuator, 1310 to 1550nm Wavelength

1 to 25dB SC Fiber-optic Female to Male Fixed Type Attenuator, 1310 to 1550nm Wavelength

Get Latest Price
Payment Type:
T/T, L/C, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union or PayPal
Product Description
Product Description
  • Passive device used to reduce amplitude of light signal without significantly changing wave form itself
  • Reduces light signal as passes through
  • Allows for higher performance than fiber splices or fiber offsets or fiber clearance, which functions by misdirecting rather absorbing light signal
  • Features:
    • Metal-ion doped fiber (continuous)
    • Simplex and reliable structure
    • Durability (well over 1W) (SDFA)
    • Wavelength independent (DWDM)
    • Low polarization dependence
  • Applications:
    • Telecommunication networks
    • CATV and LAN
    • Data networks
    • Passive optical networks
    • Attenuation tolerance (dB): 1 to 2 0.5, 3 to 7±0.75, 8 to 25 ±0.10dBxA
    • Return loss: <50dB (UPC) and no <60dB (APC)
    • Durability: >0.2dB
    • Wavelength: 1310 to 1550nm
    • Operating temperature: -40 to +85°C
    • Storage temperature: -40 to +85°C
  • Metal-ion doped fiber (continuous)
  • Simplex and reliable structure
  • Durability (well over 1W) (SDFA)
  • Wavelength independent (DWDM)
  • Low polarization dependence
  • Telecommunication networks
  • CATV and LAN
  • Data networks
  • Passive optical networks
  • Attenuation tolerance (dB): 1 to 2 0.5, 3 to 7±0.75, 8 to 25 ±0.10dBxA
  • Return loss: <50dB (UPC) and no <60dB (APC)
  • Durability: >0.2dB
  • Wavelength: 1310 to 1550nm
  • Operating temperature: -40 to +85°C
  • Storage temperature: -40 to +85°C
