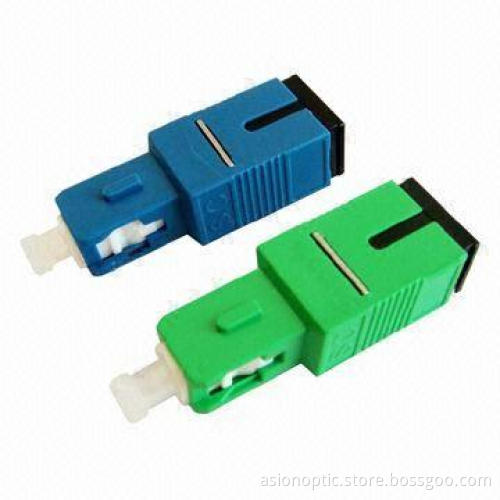

5/10dB LC/SC/FC/ST Plug-in Fiber-optic Attenuators, 200mW Maximum Optical Input Power

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Applications: CATV, active device termination, telecommunication networks, metro, local area networks, data processing networks, test equipment, premise installation and wide area networks

Features:

Bellcore compliant
Wavelength independent (dwdm)
Durable (well over 100mW)
Simple and reliable structure

Specifications:

Operating wavelength:
- SM: 1200 to 1600 or1310/1.550nm
Return loss: 50 (PC), 55 (UPC) and 65dB (APC)
Attenuation accuracy: ±0.5 (1 to 10) and ±1.0(11 to 30)
Polarization dependent loss: 0.2dB
Maximum optical input power: 200mW
Operating temperature: -40 to 80°C
100% optic tested
Free replacement warranty

Bellcore compliant

Wavelength independent (dwdm)

Durable (well over 100mW)

Simple and reliable structure

Operating wavelength:

SM: 1200 to 1600 or1310/1.550nm

Return loss: 50 (PC), 55 (UPC) and 65dB (APC)

Attenuation accuracy: ±0.5 (1 to 10) and ±1.0(11 to 30)

Polarization dependent loss: 0.2dB

Maximum optical input power: 200mW

Operating temperature: -40 to 80°C

100% optic tested

Free replacement warranty

SM: 1200 to 1600 or1310/1.550nm
