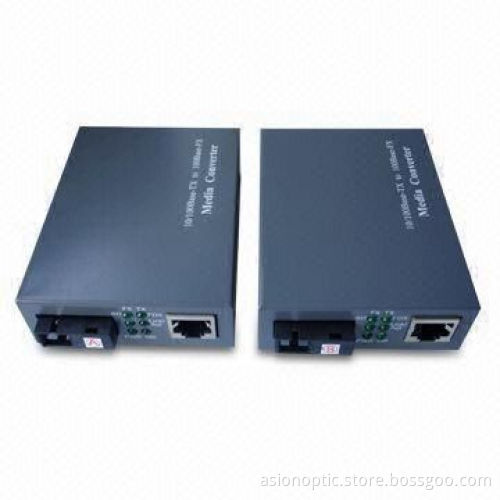

10/100M Ethernet Fiber Media Converters with 100 to 240V Voltage and Full Duplex Flow Control

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Features:

Auto negotiation function allows UTP port to auto select 10 or100M and full or half duplex
UTP port supports auto MDI-MDIX function
Supports link fault pass through (LFP) function: when opticalfiber or UTP is at fault, converter could stop all links, inaddition to power light, other LED will be off
Multiple optical transceiver could be chosen: SC, ST or FC,single- or multi-mode, single-/double-fiber
Supports 1600 bytes packet
Converter working mode could be chosen: store and forward,modified cut through or pure converter mode
Internal IC of prevented thunderbolt could greatly reducedamage of converter caused by thunderbolt induction
Internal or external switching power (optional)

Specifications:

Operating standards: IEEE802.3u, 10/100Base-TX and100Base-FX
Mac addresses table: 1k
Data buffer: built-in 128kb RAM

Connectors:

UTP: RJ45, 10/100Mbps
Fiber connector: ST/SC/FC, 100Mbps

Cable:

UTP: CAT 5 (maximum distance up to 100m)
Multi-mode fiber: 50/125 and 62.5/125μm (maximum distance upto 2 or 5km)
Single-mode fiber: 8/125, 8.7/125, 9/125 and 10/125μm(maximum distance up to 20 to 120km)

Flow control:

Full duplex: supports standard IEEE802.3x
Half duplex: back pressure
LED: power, FX SD, FX link/act, TX 100, TX FDX and TXlink/act
Power requirement: 100 to 240V, 50 to 60Hz, 5V DC, 1A

Ambient temperature: 0 to 50°C

Storage temperature: -20 to 70°C

Humidity: 5 to 90% RH
