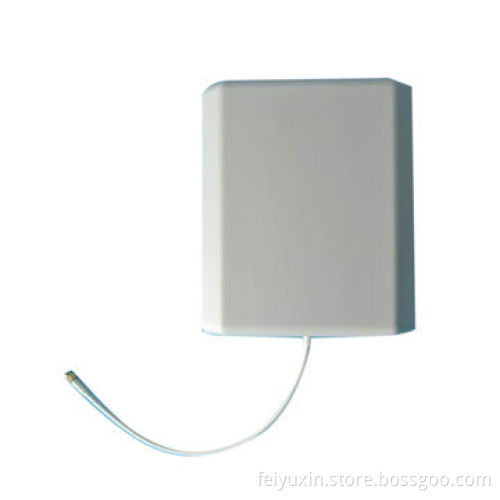

14dBi 2.4G Panel Antenna with SMA Male, High Gain

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Frequency range: 2400-2483MHz

Bandwidth: 83MHz

Gain; 14dBi

Half-power beam width（°): H：30, V：30

VSWR: ≤2.0

Input Impedance: 50Ω

Polarization: Vertical

Maximum input power: 50W

Lightning protection; DC ground

Input connector type; SMA female or requested

Mechanical specifications:

Dimensions: 210*180*45mm

Antenna weight; 0.58kg

Operating temperatures: -40-60°C

Rated Wind Velocity: 60m/s

Housing material: ABS

Housing color: white

Mounting way: wall-hanging or pole-holding

Mounting hardware: ￠35-50mm
