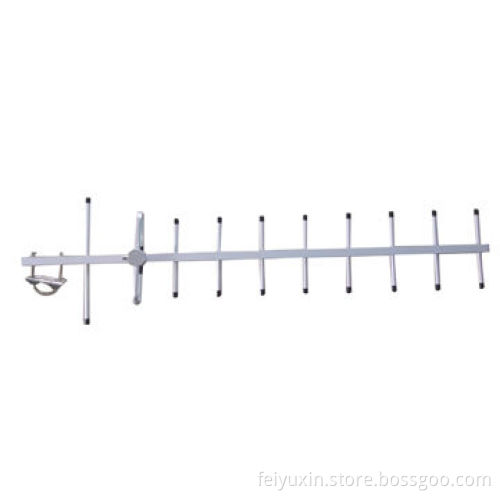

13dBi DVB-T Yagi antenna with embedded F female, 470 to 862MHz frequency
  • 13dBi DVB-T Yagi antenna with embedded F female, 470 to 862MHz frequency
13dBi DVB-T Yagi antenna with embedded F female, 470 to 862MHz frequency

13dBi DVB-T Yagi antenna with embedded F female, 470 to 862MHz frequency

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Electric specifications:
    • Frequency range: 470-862MHz
    • Bandwidth: 392MHz
    • Gain: 13dBi
    • Element: 10
    • Beam width: H: 48°, V: 42°
    • ≥16dB
    • VSWR: ≤2
    • Input impedance: 50Ω
    • Polarization: horizontal or vertical
    • Maximum power: 100W
    • Lightning protection: DC ground
    • Connector model: TNC female or more
    • Mechanical specification:
    • Size: 970*270*54mm
    • Antenna weight: 0.52kg
    • Working temperatures: -40-60°C
    • Rated weind velocity: 60m/s
    • Clamp: U type
    • Pole diameter: Φ40-Φ50mm
  • Frequency range: 470-862MHz
  • Bandwidth: 392MHz
  • Gain: 13dBi
  • Element: 10
  • Beam width: H: 48°, V: 42°
  • ≥16dB
  • VSWR: ≤2
  • Input impedance: 50Ω
  • Polarization: horizontal or vertical
  • Maximum power: 100W
  • Lightning protection: DC ground
  • Connector model: TNC female or more
  • Mechanical specification:
  • Size: 970*270*54mm
  • Antenna weight: 0.52kg
  • Working temperatures: -40-60°C
  • Rated weind velocity: 60m/s
  • Clamp: U type
  • Pole diameter: Φ40-Φ50mm
